Dwyer Instruments CSG Generator

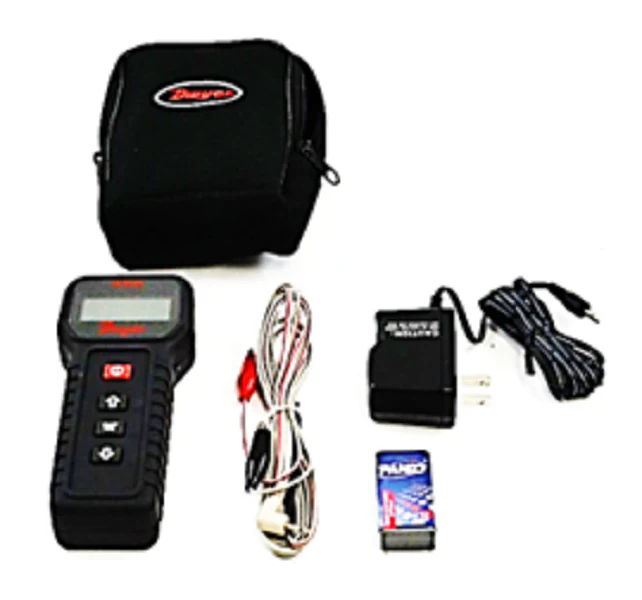

The Dwyer Instruments CSG is a specialized Current / Voltage Signal Generator designed for bench-top calibration and field troubleshooting of HVACR control systems. Providing precise 0 to 10 VDC and 0 to 20 mA output, this industrial-grade tool allows technicians to simulate sensor data and verify the response of 4-20mA transmitters, transducers, and actuators without a live process loop. It features a high-resolution LCD with blue backlighting and a versatile timed ramp function, which is essential for checking proportional valve travel and motor speed across a full range. With a compact, pocket-sized footprint and included alligator clip test leads, the CSG ensures accurate diagnostic testing of panel meters and variable frequency drives (VFDs). The unit is powered by either a 9V alkaline battery or the included 120 VAC plug-in power supply, and the integrated auto power off feature maintains battery integrity during long shifts in the field.
Key Benefits- Dual Signal Output: Generate 0 to 10 VDC or 0 to 20 mA signals to confirm the operation of wide-ranging automation components.
- Automated Ramping: Eliminate manual adjustments during sweep tests with user-programmable minimum, maximum, and timing parameters.
- Industrial Impedance Support: Handles voltage loads up to 1000 ohms minimum and current loops up to 300 ohms maximum for reliable signal conditioning.
- Field-Ready Durability: Lightweight 6 oz construction with a protective carrying case makes it a staple for any technician's service bag.
How do I simulate a 2-wire transmitter?
The CSG can be used to simulate a 2-wire mA transmitter loop when connected with an external 12 to 30V DC power supply, effectively extending the output range beyond 300 ohms for high-impedance circuits.
Can I adjust the auto-shutoff timing?
Yes, the auto power off delay can be adjusted from 1 to 20 minutes to conserve the 9V battery or disabled completely for continuous bench-top monitoring using the AC adapter.
What do I do if the "OVERLOAD" indicator appears?
An overload warning typically indicates that the load resistance is too high for the current output or that the test leads are improperly seated. Verify your loop connections and terminal impedance before resuming testing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $314.13
-65%$314.13
$109.95Dwyer Instruments CSG Generator
The Dwyer Instruments CSG is a specialized Current / Voltage Signal Generator designed for bench-top calibration and field troubleshooting of HVACR control systems. Providing precise 0 to 10 VDC and 0 to 20 mA output, this industrial-grade tool allows technicians to simulate sensor data and verify the response of 4-20mA transmitters, transducers, and actuators without a live process loop. It features a high-resolution LCD with blue backlighting and a versatile timed ramp function, which is essential for checking proportional valve travel and motor speed across a full range. With a compact, pocket-sized footprint and included alligator clip test leads, the CSG ensures accurate diagnostic testing of panel meters and variable frequency drives (VFDs). The unit is powered by either a 9V alkaline battery or the included 120 VAC plug-in power supply, and the integrated auto power off feature maintains battery integrity during long shifts in the field.
Key Benefits- Dual Signal Output: Generate 0 to 10 VDC or 0 to 20 mA signals to confirm the operation of wide-ranging automation components.
- Automated Ramping: Eliminate manual adjustments during sweep tests with user-programmable minimum, maximum, and timing parameters.
- Industrial Impedance Support: Handles voltage loads up to 1000 ohms minimum and current loops up to 300 ohms maximum for reliable signal conditioning.
- Field-Ready Durability: Lightweight 6 oz construction with a protective carrying case makes it a staple for any technician's service bag.
How do I simulate a 2-wire transmitter?
The CSG can be used to simulate a 2-wire mA transmitter loop when connected with an external 12 to 30V DC power supply, effectively extending the output range beyond 300 ohms for high-impedance circuits.
Can I adjust the auto-shutoff timing?
Yes, the auto power off delay can be adjusted from 1 to 20 minutes to conserve the 9V battery or disabled completely for continuous bench-top monitoring using the AC adapter.
What do I do if the "OVERLOAD" indicator appears?
An overload warning typically indicates that the load resistance is too high for the current output or that the test leads are improperly seated. Verify your loop connections and terminal impedance before resuming testing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
