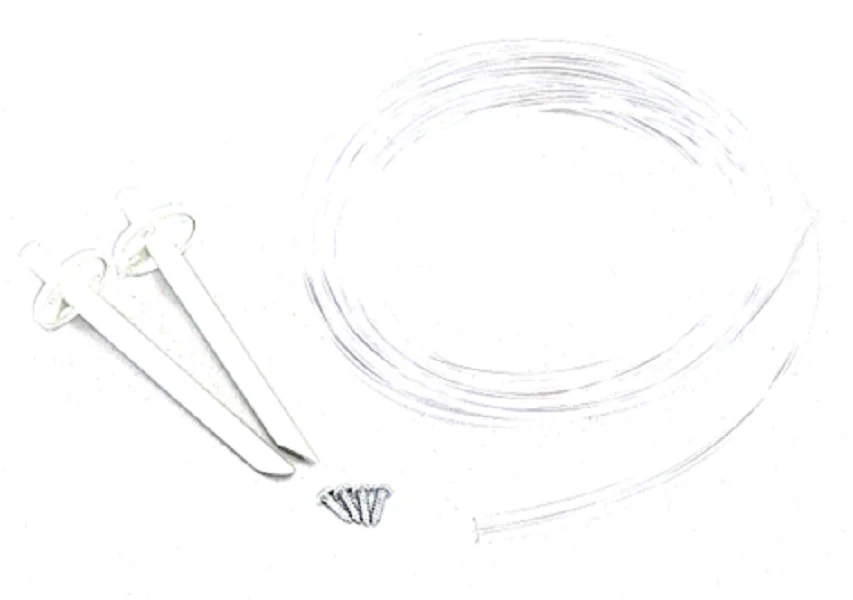

Dwyer Instruments A-481 Installer Kit
Successfully commission differential pressure systems with the Dwyer Instruments A-481 Installer Kit. Engineered for high-accuracy static pressure measurement, this kit provides the essential interface between your ductwork and monitoring instrumentation. It is specifically designed for seamless integration with Dwyer ADPS and EDPS series pressure switches, as well as Magnehelic differential pressure gauges and duct air flow sensors. By utilizing the included A-480 plastic static pressure tips, technicians can effectively neutralize air velocity (impact) pressure, ensuring the differential pressure transmitter receives a stable, true static signal. This stability is critical for HVAC system balancing and verifying filter pressure drop in accordance with ASHRAE standards. The kit facilitates a professional duct pressure sensor installation, featuring 7 feet (2.1 meters) of flexible PVC tubing to bridge the gap between sensing points and the controller. This allows for precise monitoring across coils, blowers, and air handlers, providing the low-pressure diagnostic data required for optimized building automation performance.
Key Benefits- Universal Compatibility: Optimized for use with Dwyer 2000, DM-1000, and sensing probes to ensure reliable data across HVAC differential pressure switches.
- Engineered Precision: Two A-480 static pressure tips are included to accurately capture pressure without interference from turbulent airflow.
- Extended Reach: Furnished with 7' of durable PVC tubing, allowing for flexible mounting configurations in tight mechanical spaces.
- Contractor-Grade Durability: Robust plastic components resist common industrial contaminants and maintain seal integrity over time.
- Simplified Commissioning: Streamlines the installation of differential pressure alarms and transmitters for rapid site deployment.
Is this kit compatible with other air pressure gauges?
Yes, while designed for the Dwyer ADPS/EDPS series, the 1/4" OD/ID sizing is industry-standard for most differential pressure manometers and sensors requiring a remote static signal.
Should I use both tips for a single sensor?
Normally, yes. To monitor duct static pressure across a filter or coil, one tip is placed upstream (high pressure) and one downstream (low pressure) to calculate the exact differential.
Does this kit include a mounting flange?
The A-481 focuses on the static pressure tips and tubing. For applications requiring an adjustable duct flange, ensure your specific sensing probe includes the bracket or source a separate mounting kit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $9.09
-65%$9.09
$3.18Dwyer Instruments A-481 Installer Kit
Successfully commission differential pressure systems with the Dwyer Instruments A-481 Installer Kit. Engineered for high-accuracy static pressure measurement, this kit provides the essential interface between your ductwork and monitoring instrumentation. It is specifically designed for seamless integration with Dwyer ADPS and EDPS series pressure switches, as well as Magnehelic differential pressure gauges and duct air flow sensors. By utilizing the included A-480 plastic static pressure tips, technicians can effectively neutralize air velocity (impact) pressure, ensuring the differential pressure transmitter receives a stable, true static signal. This stability is critical for HVAC system balancing and verifying filter pressure drop in accordance with ASHRAE standards. The kit facilitates a professional duct pressure sensor installation, featuring 7 feet (2.1 meters) of flexible PVC tubing to bridge the gap between sensing points and the controller. This allows for precise monitoring across coils, blowers, and air handlers, providing the low-pressure diagnostic data required for optimized building automation performance.
Key Benefits- Universal Compatibility: Optimized for use with Dwyer 2000, DM-1000, and sensing probes to ensure reliable data across HVAC differential pressure switches.
- Engineered Precision: Two A-480 static pressure tips are included to accurately capture pressure without interference from turbulent airflow.
- Extended Reach: Furnished with 7' of durable PVC tubing, allowing for flexible mounting configurations in tight mechanical spaces.
- Contractor-Grade Durability: Robust plastic components resist common industrial contaminants and maintain seal integrity over time.
- Simplified Commissioning: Streamlines the installation of differential pressure alarms and transmitters for rapid site deployment.
Is this kit compatible with other air pressure gauges?
Yes, while designed for the Dwyer ADPS/EDPS series, the 1/4" OD/ID sizing is industry-standard for most differential pressure manometers and sensors requiring a remote static signal.
Should I use both tips for a single sensor?
Normally, yes. To monitor duct static pressure across a filter or coil, one tip is placed upstream (high pressure) and one downstream (low pressure) to calculate the exact differential.
Does this kit include a mounting flange?
The A-481 focuses on the static pressure tips and tubing. For applications requiring an adjustable duct flange, ensure your specific sensing probe includes the bracket or source a separate mounting kit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
