Dwyer Instruments A-417A Plate

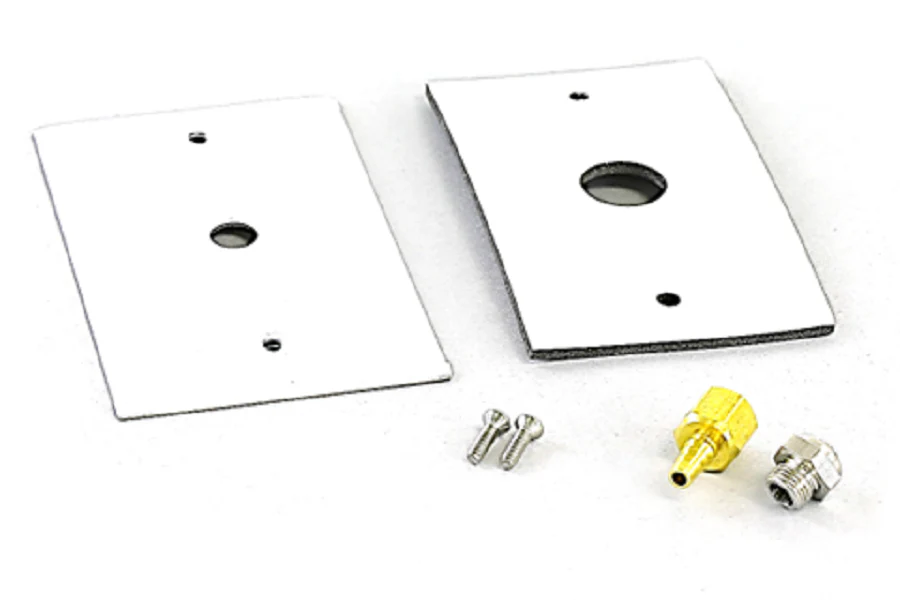

The Dwyer Instruments A-417A is a professional-grade Static Pressure Pickup Plate engineered specifically for critical environments such as clean rooms and high-spec HVACR installations. This stainless steel wall plate provides a flush-mount solution that interfaces seamlessly with standard 2" x 4" electrical boxes, ensuring a clean, low-profile finish in the field. Designed to integrate with Magnehelic gauges, pressure switches, and transmitters, the A-417A utilizes a 60-micron filter to screen out contaminants and dampen turbulence, providing a stable and accurate reference for room pressure monitoring. The unit features a robust barbed brass fitting compatible with 1/8" to 3/16" ID flexible tubing, commonly used in differential pressure sensing applications. Each assembly includes a foam gasket for a reliable airtight seal and high-quality mounting screws to facilitate immediate installation on-site. For technicians performing air balancing or facility automation, this pickup ensures precise detection of pressure differentials without the visual clutter of exposed duct probes.
Key Benefits for the Contractor:- Durable Construction: Crafted from 304 stainless steel for long-term corrosion resistance in sanitized or industrial environments.
- Advanced Filtration: The integrated 60-micron filter protects sensitive downstream instrumentation from dust and particulates.
- Standardized Fit: Easily mounts to a single-gang electrical box, eliminating the need for custom brackets or complex structural modifications.
- Airtight Integrity: Supplied with a heavy-duty foam gasket to prevent leakage at the sensing point, maintaining the accuracy of your static pressure readings.
- Versatile Tubing Compatibility: High-performance brass barb accepts multiple tubing sizes (1/8" and 3/16") to match existing field setups.
- Is the A-417A compatible with other gauge brands? Yes, while optimized for Dwyer Instruments products like the Magnehelic series, it is compatible with any controller or manometer that accepts 1/8" or 3/16" tubing.
- Can this be used for outdoor sensing? No, this model is specifically intended for indoor static pressure pickup or clean room monitoring. For outdoor applications, a weather-shielded sensor is required.
- How do I maintain the 60-micron filter? The filter is designed for low-maintenance operation, but if used in high-particulate areas, the plate should be inspected periodically for debris that could cause signal lag.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
