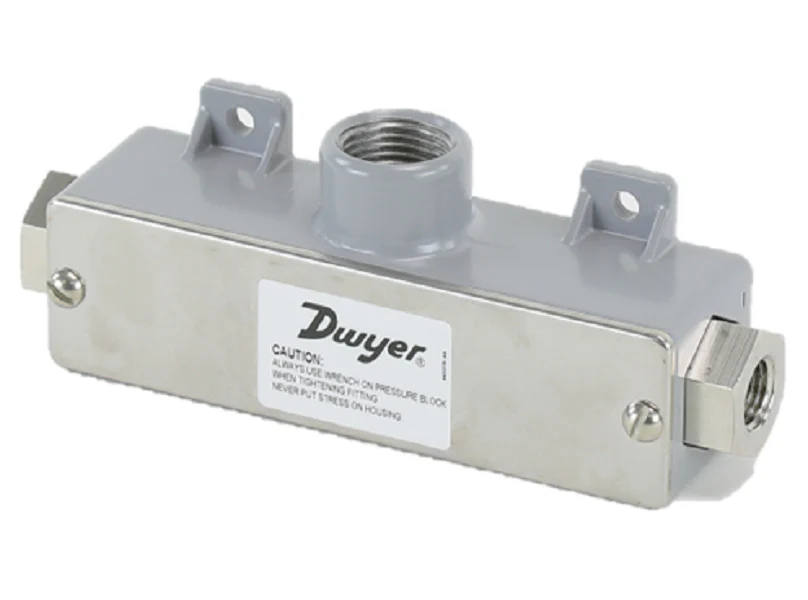

Dwyer Instruments 629C-03-CH-P2-E5S1 Pressure Transmitter
The Dwyer Instruments 629C-03-CH-P2-E5-S1 is a high-performance wet/wet differential pressure transmitter engineered for the rigorous demands of commercial HVAC and industrial process monitoring. Featuring a 0 to 25 psid range, this unit utilizes dual 316L stainless steel sensors to deliver 0.5% full-scale accuracy, ensuring precision in applications such as filter monitoring, heat exchanger pressure drop analysis, and pump control. The NEMA 4X conduit housing provides a rugged, weather-resistant enclosure suitable for harsh mechanical rooms, while the 4 to 20 mA electrical output offers a standard two-wire interface compatible with most building automation systems and PLCs. With 1/4" female NPT fittings and a 1/2" female NPT conduit connection, this industrial pressure sensor is designed for direct integration into existing piping. A technician-friendly push-button zero adjustment is located under the cover, simplifying field calibration without the need for specialized tools or removing the HVAC pressure transducer from the line.
Key Benefits for Contractors:- Dual Sensor Technology: Minimizes moving parts and internal volume for exceptional response times and long-term reliability in liquid and gas pressure monitoring.
- Field-Serviceable Design: Features an accessible terminal block and push-button zeroing to reduce installation time and simplify routine maintenance.
- Rugged Construction: The NEMA 4X (IP66) rated housing protects sensitive electronics against moisture, dust, and corrosion in demanding environments.
- High Media Compatibility: 316L stainless steel wetted parts allow for use with a wide range of compatible gases and liquids, including water and many refrigerants.
How do I calibrate the zero point on the 629C-03-CH-P2-E5-S1?
This model features an internal push-button for zeroing. After ensuring no differential pressure is applied, simply remove the top cover and depress the zero button to reset the 4 mA baseline.
Can this transmitter be used in outdoor installations?
Yes, the housing is rated for NEMA 4X (IP66), making it resistant to rain and hose-directed water. Always use liquid-tight conduit connectors to maintain the enclosure's environmental rating.
What is the maximum static pressure this unit can handle?
The Series 629C is designed to handle significant overpressure; for the 25 psid range, it typically supports a maximum static pressure of up to 120 psi without damaging the sensors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $501.08
-65%$501.08
$175.38Dwyer Instruments 629C-03-CH-P2-E5S1 Pressure Transmitter
The Dwyer Instruments 629C-03-CH-P2-E5-S1 is a high-performance wet/wet differential pressure transmitter engineered for the rigorous demands of commercial HVAC and industrial process monitoring. Featuring a 0 to 25 psid range, this unit utilizes dual 316L stainless steel sensors to deliver 0.5% full-scale accuracy, ensuring precision in applications such as filter monitoring, heat exchanger pressure drop analysis, and pump control. The NEMA 4X conduit housing provides a rugged, weather-resistant enclosure suitable for harsh mechanical rooms, while the 4 to 20 mA electrical output offers a standard two-wire interface compatible with most building automation systems and PLCs. With 1/4" female NPT fittings and a 1/2" female NPT conduit connection, this industrial pressure sensor is designed for direct integration into existing piping. A technician-friendly push-button zero adjustment is located under the cover, simplifying field calibration without the need for specialized tools or removing the HVAC pressure transducer from the line.
Key Benefits for Contractors:- Dual Sensor Technology: Minimizes moving parts and internal volume for exceptional response times and long-term reliability in liquid and gas pressure monitoring.
- Field-Serviceable Design: Features an accessible terminal block and push-button zeroing to reduce installation time and simplify routine maintenance.
- Rugged Construction: The NEMA 4X (IP66) rated housing protects sensitive electronics against moisture, dust, and corrosion in demanding environments.
- High Media Compatibility: 316L stainless steel wetted parts allow for use with a wide range of compatible gases and liquids, including water and many refrigerants.
How do I calibrate the zero point on the 629C-03-CH-P2-E5-S1?
This model features an internal push-button for zeroing. After ensuring no differential pressure is applied, simply remove the top cover and depress the zero button to reset the 4 mA baseline.
Can this transmitter be used in outdoor installations?
Yes, the housing is rated for NEMA 4X (IP66), making it resistant to rain and hose-directed water. Always use liquid-tight conduit connectors to maintain the enclosure's environmental rating.
What is the maximum static pressure this unit can handle?
The Series 629C is designed to handle significant overpressure; for the 25 psid range, it typically supports a maximum static pressure of up to 120 psi without damaging the sensors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
