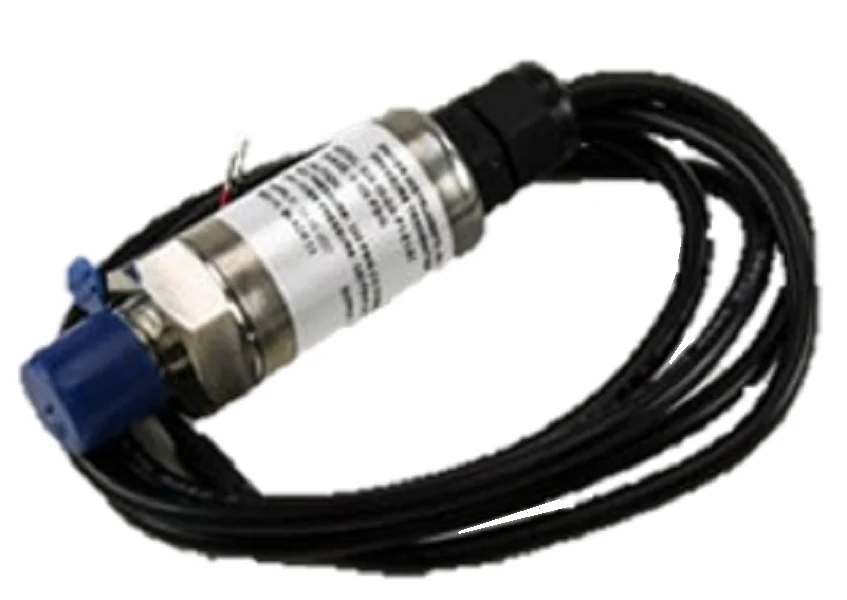

Dwyer Instruments 628-10-GH-P1-E1-S1 Pressure Transmitter
The Dwyer Instruments 628-10-GH-P1-E1-S1 Pressure Transmitter is a field-proven industrial pressure transmitter designed for technicians who require stable 0-100 psig monitoring in heavy-duty environments. This piezoresistive pressure sensor utilizes an oil-filled 316L stainless steel cell that provides high shock and vibration resistance, ensuring a consistent 4-20 mA output signal back to your PLC or controller. The NEMA 4X (IP66) housing is constructed from 300 series stainless steel, making it the standard for HVAC/R, process control, and outdoor applications where moisture or corrosion are constant threats. With a 1/4 inch male NPT process connection and a 3-foot cable, this unit is ready for immediate integration into hydraulic and pneumatic systems. The inclusion of a 4-1/2 digit LCD provides local pressure verification to simplify troubleshooting and commissioning, while the +/- 1% full-scale accuracy ensures professional-grade precision for fluid pressure monitoring and OEM equipment integration.
Key Benefits for Contractors
- Rugged Enclosure: NEMA 4X / IP66 rated 300 series stainless steel housing protects against washdowns and harsh outdoor environments.
- High Compatibility: 316L stainless steel wetted parts are compatible with air, water, hydraulic oils, and various gases.
- Local Monitoring: Integrated 4-1/2 digit LCD allows for instant field diagnostics without a multimeter.
- Signal Stability: Field-proven 4-20 mA output provides long-distance transmission with high immunity to electrical noise.
- Simplified Installation: Standard 1/4 inch NPT fitting and pre-wired 3-foot cable gland reduce labor time on the job site.
Common Questions
Is the 628 series suitable for corrosive media?
Yes, because the wetted parts are fabricated from 316L stainless steel, this transmitter is designed to handle various industrial fluids and gases that might degrade standard brass or copper components.
Does this unit require a specific power supply?
The transmitter operates on a wide 10-30 VDC loop power range, making it compatible with most standard 24V industrial power supplies and control systems.
Can this be mounted outdoors?
Absolutely. The NEMA 4X rating ensures the internal electronics are sealed against dust, rain, and ice formation, which is critical for rooftop HVAC or water treatment applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $144.39
-65%$144.39
$50.54Dwyer Instruments 628-10-GH-P1-E1-S1 Pressure Transmitter
The Dwyer Instruments 628-10-GH-P1-E1-S1 Pressure Transmitter is a field-proven industrial pressure transmitter designed for technicians who require stable 0-100 psig monitoring in heavy-duty environments. This piezoresistive pressure sensor utilizes an oil-filled 316L stainless steel cell that provides high shock and vibration resistance, ensuring a consistent 4-20 mA output signal back to your PLC or controller. The NEMA 4X (IP66) housing is constructed from 300 series stainless steel, making it the standard for HVAC/R, process control, and outdoor applications where moisture or corrosion are constant threats. With a 1/4 inch male NPT process connection and a 3-foot cable, this unit is ready for immediate integration into hydraulic and pneumatic systems. The inclusion of a 4-1/2 digit LCD provides local pressure verification to simplify troubleshooting and commissioning, while the +/- 1% full-scale accuracy ensures professional-grade precision for fluid pressure monitoring and OEM equipment integration.
Key Benefits for Contractors
- Rugged Enclosure: NEMA 4X / IP66 rated 300 series stainless steel housing protects against washdowns and harsh outdoor environments.
- High Compatibility: 316L stainless steel wetted parts are compatible with air, water, hydraulic oils, and various gases.
- Local Monitoring: Integrated 4-1/2 digit LCD allows for instant field diagnostics without a multimeter.
- Signal Stability: Field-proven 4-20 mA output provides long-distance transmission with high immunity to electrical noise.
- Simplified Installation: Standard 1/4 inch NPT fitting and pre-wired 3-foot cable gland reduce labor time on the job site.
Common Questions
Is the 628 series suitable for corrosive media?
Yes, because the wetted parts are fabricated from 316L stainless steel, this transmitter is designed to handle various industrial fluids and gases that might degrade standard brass or copper components.
Does this unit require a specific power supply?
The transmitter operates on a wide 10-30 VDC loop power range, making it compatible with most standard 24V industrial power supplies and control systems.
Can this be mounted outdoors?
Absolutely. The NEMA 4X rating ensures the internal electronics are sealed against dust, rain, and ice formation, which is critical for rooftop HVAC or water treatment applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
