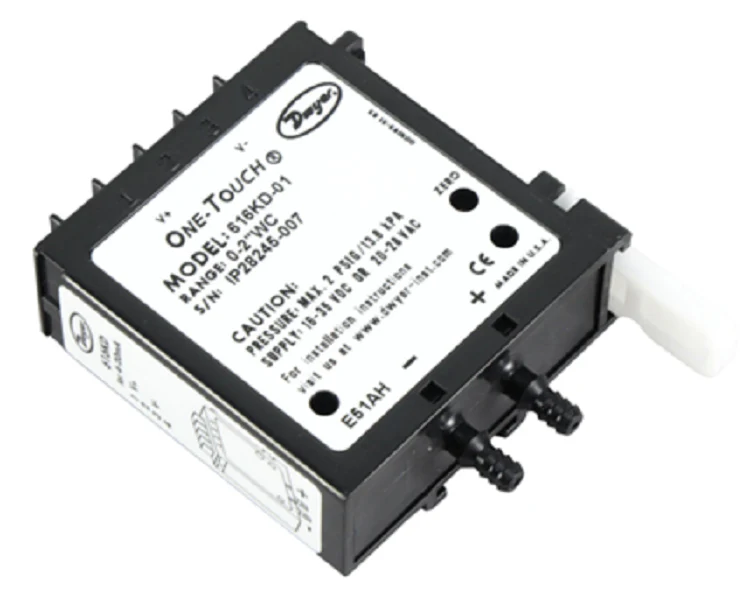

Dwyer Instruments 616KD-01 Pressure Transmitter
The Dwyer Instruments 616KD-01 Pressure Transmitter is a compact, high-reliability solution for monitoring differential pressure in critical HVACR environments. Designed with One-Touch Digital Push Button Calibration, this unit eliminates the need for manual potentiometers, allowing technicians to calibrate zero and span settings instantly without external pressure references. This model is engineered for air and non-combustible gases, delivering a precise 0 to 2" w.c. range with ±2% full-scale accuracy. Its field-selectable output provides ultimate versatility on the job site, supporting 4-20mA signal, 0-10V, 0-5V, 2-10V, and 1-5V configurations to match any controller input. The DIN rail mount housing and open screw terminals simplify installation in Variable Air Volume (VAV) systems and air handling units. By reducing setup time and ensuring long-term stability, the 616KD-01 serves as a foundational component for duct pressure monitoring and filter status tracking in commercial building automation.
Key Benefits:- One-Touch Calibration: Digital push-button technology manages both zero and span, removing the need for reference pressure sources during service.
- Multi-Signal Compatibility: Supports 4-20mA and multiple voltage outputs (0-10V, 0-5V, etc.) for seamless integration with various BAS and PLC systems.
- Compact DIN Rail Design: Small footprint and integral mounting clips allow for easy installation in crowded control panels.
- Tool-Free Setup: Open screw-type terminal blocks and barbed process connections fitting 1/8" and 3/16" ID tubing streamline field wiring.
What media is compatible with the 616KD-01?
This transmitter is designed strictly for use with air and non-combustible gases. It is ideal for dry, non-corrosive environments such as supply ducts and cleanrooms.
Does it require a specific mounting orientation?
While the 616KD-01 is generally position-insensitive, it is best practice for veteran installers to mount the unit vertically with the dual-sized barbed connections pointing down to prevent moisture accumulation.
Can the voltage output be changed in the field?
Yes. This unit features field-selectable voltage ranges, allowing you to switch between 0-5V, 0-10V, and other standard signals to meet specific HVAC automation requirements without replacing the hardware.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $118.14
-65%$118.14
$41.35Dwyer Instruments 616KD-01 Pressure Transmitter
The Dwyer Instruments 616KD-01 Pressure Transmitter is a compact, high-reliability solution for monitoring differential pressure in critical HVACR environments. Designed with One-Touch Digital Push Button Calibration, this unit eliminates the need for manual potentiometers, allowing technicians to calibrate zero and span settings instantly without external pressure references. This model is engineered for air and non-combustible gases, delivering a precise 0 to 2" w.c. range with ±2% full-scale accuracy. Its field-selectable output provides ultimate versatility on the job site, supporting 4-20mA signal, 0-10V, 0-5V, 2-10V, and 1-5V configurations to match any controller input. The DIN rail mount housing and open screw terminals simplify installation in Variable Air Volume (VAV) systems and air handling units. By reducing setup time and ensuring long-term stability, the 616KD-01 serves as a foundational component for duct pressure monitoring and filter status tracking in commercial building automation.
Key Benefits:- One-Touch Calibration: Digital push-button technology manages both zero and span, removing the need for reference pressure sources during service.
- Multi-Signal Compatibility: Supports 4-20mA and multiple voltage outputs (0-10V, 0-5V, etc.) for seamless integration with various BAS and PLC systems.
- Compact DIN Rail Design: Small footprint and integral mounting clips allow for easy installation in crowded control panels.
- Tool-Free Setup: Open screw-type terminal blocks and barbed process connections fitting 1/8" and 3/16" ID tubing streamline field wiring.
What media is compatible with the 616KD-01?
This transmitter is designed strictly for use with air and non-combustible gases. It is ideal for dry, non-corrosive environments such as supply ducts and cleanrooms.
Does it require a specific mounting orientation?
While the 616KD-01 is generally position-insensitive, it is best practice for veteran installers to mount the unit vertically with the dual-sized barbed connections pointing down to prevent moisture accumulation.
Can the voltage output be changed in the field?
Yes. This unit features field-selectable voltage ranges, allowing you to switch between 0-5V, 0-10V, and other standard signals to meet specific HVAC automation requirements without replacing the hardware.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
