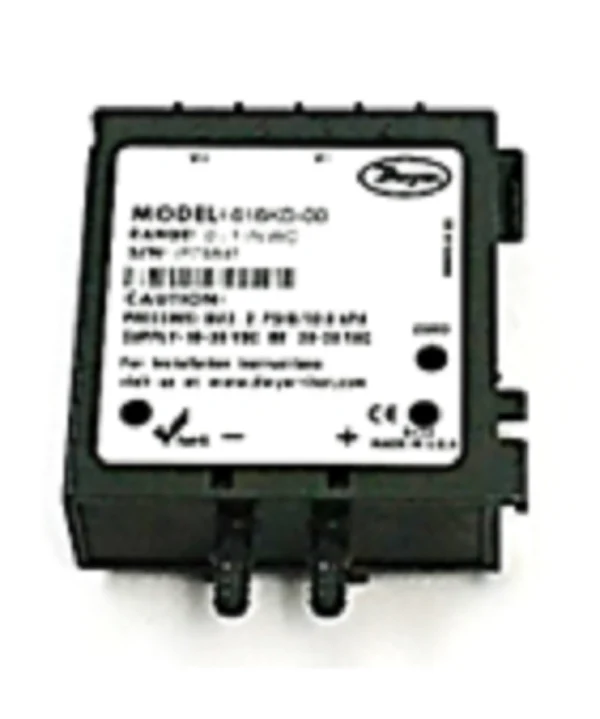

Dwyer Instruments 616KD-00 Pressure Transmitter
The Dwyer Instruments 616KD-00 is an essential component for high-precision differential pressure transmitter applications within commercial HVAC systems. Designed with a range of 0 to 1 in. w.c., this unit is engineered for monitoring air and non-combustible gases in variable air volume (VAV) systems and cleanroom environments. It features One-Touch digital push-button calibration, which simplifies the commissioning process by allowing technicians to set both zero and span without the need for external reference pressure sources or potentiometer adjustments. The field-selectable output provides maximum flexibility for integration, supporting a standard 4-20mA signal as well as 0-10V, 0-5V, 2-10V, and 1-5V voltage modes. Built with a compact NEMA 1 (IP20) housing, it is optimized for DIN rail mounting and features open screw terminals for fast, reliable wiring. This transmitter delivers ±2% full-scale accuracy, ensuring dependable performance for duct pressure monitoring and air handler control.
Key Benefits- One-Touch Calibration: Eliminates the need for cumbersome turn-pots and external calibrators, allowing for rapid in-situ zero and span adjustments.
- Field Selectable Outputs: Versatile design supports 4-20mA and multiple voltage signals (0-5V, 0-10V) to match any BMS or controller requirement.
- Flexible Mounting: Molded housing includes integral tabs for back mounting and clips for 35mm DIN rail installation.
- Dual-Size Process Connections: Barbed fittings are designed to fit both 1/8 inch and 3/16 inch ID rubber or vinyl tubing.
How do I calibrate the zero point on the 616KD-00?
With no pressure applied to the ports, simply hold the digital push button for two seconds. The onboard electronics automatically calibrate the zero and span, saving significant time during routine maintenance.
What media is compatible with this pressure transmitter?
This unit is strictly for use with air and non-combustible, compatible gases. It is commonly used for filter monitoring or measuring static pressure in air handling units.
Does this unit require a specific mounting orientation?
For the highest accuracy, it is recommended to mount the unit vertically with the pressure connections pointing downward. While it is generally position-insensitive, factory calibration is performed in this vertical orientation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $118.14
-65%$118.14
$41.35Dwyer Instruments 616KD-00 Pressure Transmitter
