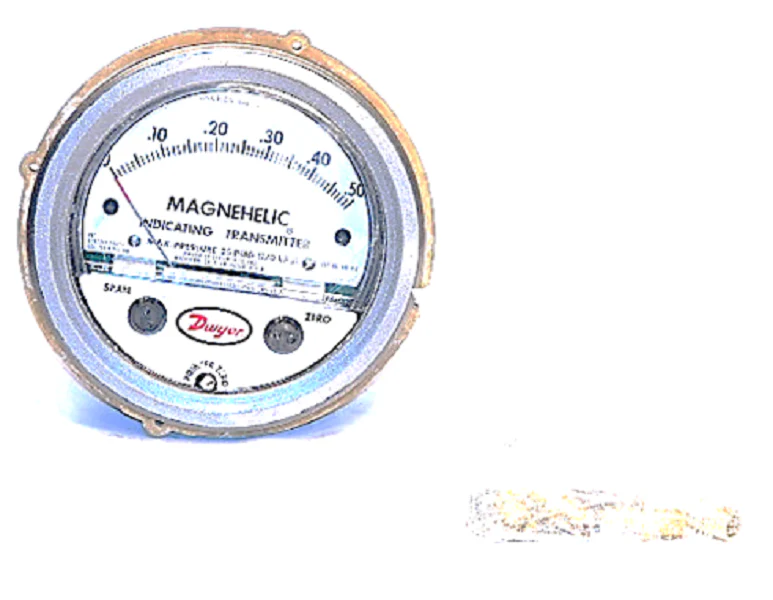

Dwyer Instruments 605-0 Transmitter
The Dwyer Instruments 605-0 Transmitter is a field-proven differential pressure indicating transmitter designed for monitoring air or non-combustible gases in critical HVACR applications. This versatile instrument combines the visual monitoring capabilities of a Magnehelic gauge with a 4-20 mA electronic output signal, providing a dual-purpose solution for localized verification and remote BMS integration. Engineered for a low-range 0 to 0.50" w.c. scale, it maintains a mechanical accuracy of ±3% and an electrical accuracy of ±2% of full scale. The unit features standard 1/8" female NPT process connections and is rated for a maximum pressure of 25 psi. The 605-0 is frequently utilized in cleanroom pressure monitoring and VAV box control, where precise, low-differential pressure readings are essential for maintaining proper airflow and system balance. Its robust design ensures reliable performance in industrial environments while simplifying the installation process for technicians needing a reliable HVAC pressure sensor with local diagnostics.
Key Benefits
- Dual-Function Monitoring: Provides both a mechanical dial for local readings and a 4-20 mA signal for building automation systems.
- High Overpressure Protection: Rated for up to 25 psi maximum pressure, protecting the internal diaphragm from sudden system surges.
- Field-Proven Reliability: Employs the friction-free Magnehelic gauge movement to ensure long-term stability and resistance to shock or vibration.
- Versatile Application: Ideal for filter monitoring, fan control, and duct pressure applications using air or compatible gases.
Common Questions
What is the power requirement for the 605-0 transmitter?
The unit operates on a 10-35 VDC loop-powered supply, generating a standard 4-20 mA output for integration with most industrial controllers.
Can this transmitter be used with liquids?
No, the 605-0 is strictly designed for use with air or non-combustible gases. Use with liquids will damage the internal sensing element.
How do I handle zero-point calibration in the field?
Technicians can easily adjust the zero point via the external zero screw on the face of the gauge without needing to disconnect the process lines.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
