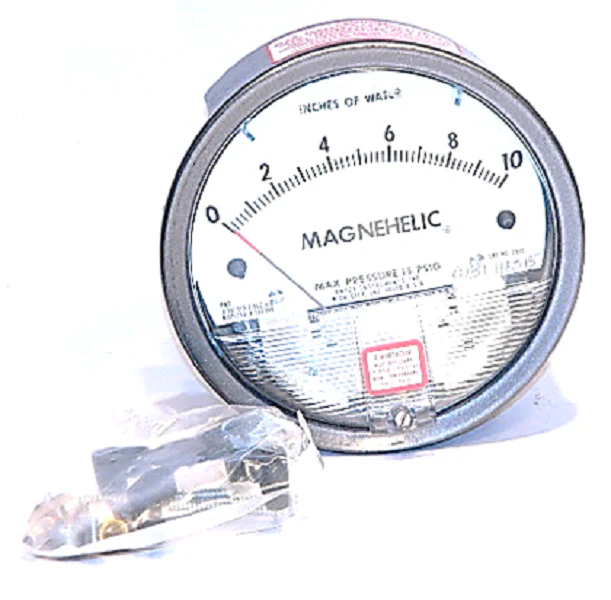

Dwyer Instruments 2010 Pressure Gage
The Dwyer Instruments 2010 Pressure Gage is a field-proven Magnehelic differential pressure gage designed for precision monitoring of air and non-combustible gases in critical HVACR environments. Built with a 4" diameter dial face, this analog instrument utilizes a frictionless Magnehelic movement that eliminates the need for manometer fluid, preventing issues with evaporation or freezing. With a range of 0-10.0" w.c. and an accuracy of ±2% of full scale, it serves as a reliable standard for measuring fan and blower pressures, filter resistance, and furnace draft. The rugged die-cast aluminum case is IP67-rated and iridite-dipped to withstand harsh conditions, including high vibration and overpressure up to 15 psig. Installation is streamlined via 1/8" female NPT process connections, provided in duplicate on the side and back to accommodate both flange or flush mount configurations. For contractors managing clean rooms or industrial ventilation, the 2010 delivers the high-stability differential pressure measurement required for precise system balancing and air velocity monitoring.
Key Benefits- Frictionless Movement: The samarium cobalt magnet and helix design ensure rapid response and long-term low-pressure gauge accuracy without mechanical wear.
- Versatile Mounting: Optimized for surface or flush mounting with dual NPT taps for flexible plumbing in tight mechanical spaces.
- Environmental Resilience: Weatherproof IP67 enclosure and gray hammerloid finish provide superior resistance to salt spray and industrial contaminants.
- Maintenance-Free Design: No power requirements or periodic lubrication needed; includes an external zero-adjust screw for quick field calibration.
How do you calibrate a Dwyer 2010 Magnehelic gauge in the field?
Field calibration is performed by venting both the high and low-pressure ports to the atmosphere and using the external zero-adjustment screw located at the bottom of the 4" dial face to align the pointer with zero.
What media is compatible with the Series 2000 Magnehelic?
This gauge is engineered for clean, dry air and non-combustible, non-corrosive gases. For applications involving natural gas, specific Buna-N diaphragm options must be used to ensure material compatibility.
Can this pressure gage be mounted horizontally?
Standard 2010 models are calibrated for vertical diaphragm orientation. While they can function in other positions, mounting away from vertical requires re-zeroing and may slightly impact accuracy on low-range scales.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
