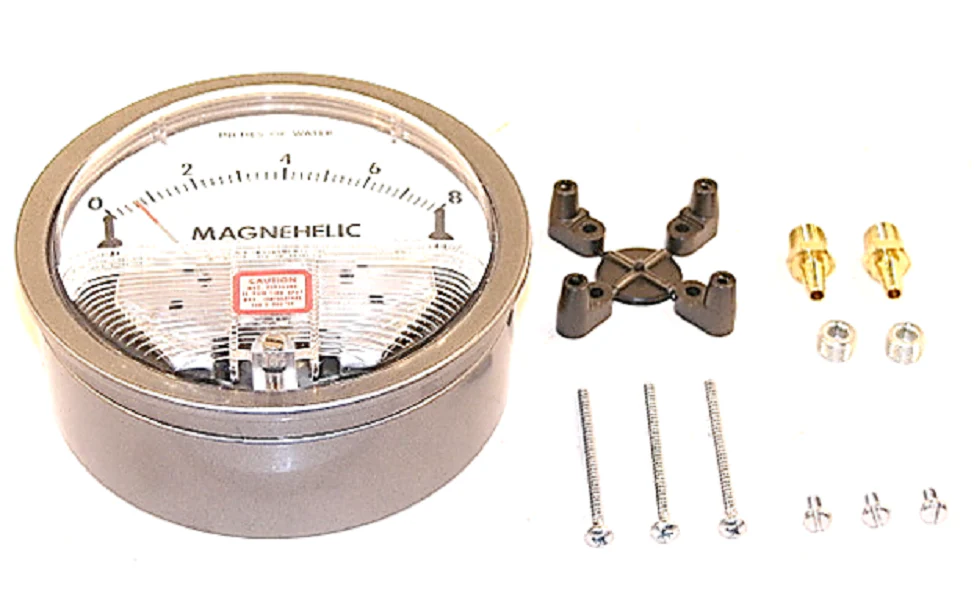

Dwyer Instruments 2008 Pressure Gage
For high-performance air handling and environmental monitoring, the Dwyer Instruments 2008 Magnehelic Gauge remains the industry standard for measuring differential pressure. This mechanical pressure gage features a 0-8.0" w.c. range with a 4" diameter dial face, providing a clear, undistorted readout even from a distance. Built with a rugged die-cast aluminum housing and a shatterproof acrylic cover, this unit is engineered to withstand 168-hour salt spray tests, making it a reliable choice for HVAC filter monitoring, cleanroom pressure checks, and blower vacuum evaluation. The frictionless Magnehelic movement utilizes a magnetic linkage rather than mechanical gears, ensuring a rapid response to pressure changes while resisting shock and vibration. With 1/8" female NPT process connections duplicated on the side and back, this 0-8.0" w.c. Magnehelic offers versatile flange or flush mount options for any panel or surface installation. It is intended for use with clean, dry air or non-combustible gases at temperatures between 20°F and 140°F.
Key Benefits- High Accuracy: Delivers precision within ±2% of full scale throughout the entire 0-8.0" w.c. range for critical air speed and pressure measurements.
- Durable Construction: Features a die-cast aluminum case with a gray hammerloid finish and an IP67-rated enclosure for protection against the elements.
- Maintenance-Free Design: The magnetic coupling eliminates the friction, backlash, and wear associated with traditional geared movements.
- Flexible Installation: Includes dual pairs of high and low-pressure taps (side and back) to accommodate various 1/8" NPT plumbing layouts.
- Safe Overpressure Protection: Equipped with a silicone rubber blowout plug that opens at approximately 25 psig to protect the internal diaphragm.
Can the Dwyer 2008 be used for natural gas applications?
The standard 2008 model is designed for air and non-combustible gases. For natural gas or other specific media, consult the factory regarding a Buna-N diaphragm or specific gas-compatible options.
What is the proper mounting orientation for this gage?
For maximum accuracy, the Magnehelic 2000 series should be mounted with the diaphragm in a vertical position. If you must mount it horizontally, the gage should be recalibrated to account for the weight of the internal components.
Does this gauge require external power or calibration fluids?
No. This is a purely mechanical differential pressure gage. It does not require power or manometer fluids, eliminating issues related to evaporation, freezing, or leveling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
