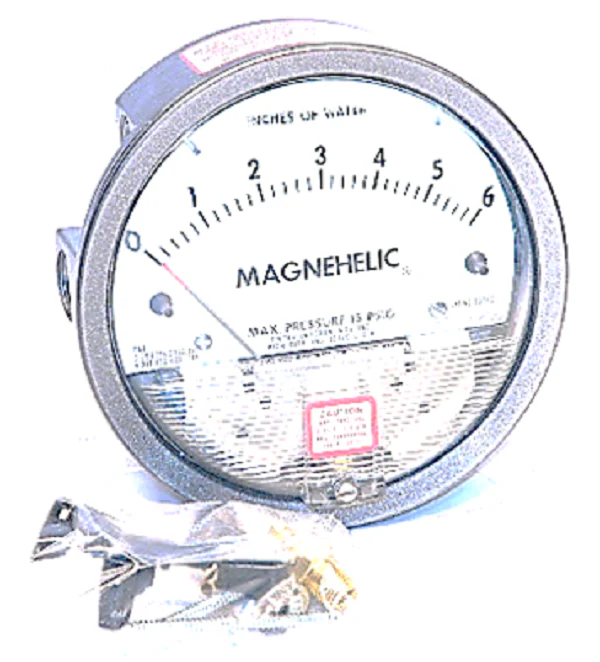

Dwyer Instruments 2006 Pressure Gage
The Dwyer Instruments 2006 Magnehelic® differential pressure gage is the industry standard for monitoring low air and non-combustible gas pressures with a range of 0-6.0" w.c.. Trusted by contractors for filter monitoring and HVAC system balancing, this mechanical gage uses a frictionless magnetic movement that eliminates the risk of fluid evaporation or freezing associated with traditional manometers. Housed in a rugged IP67-rated die-cast aluminum case, the unit resists shock and vibration, ensuring high-accuracy readings in demanding environments. For versatile installation, the gage features 1/8" female NPT process connections on both the side and back, allowing for seamless flush mount or surface mounting. The 4-inch diameter dial face is protected by a clear acrylic cover, providing an undistorted view of the red-tipped pointer. Engineered for precision, it maintains an accuracy within 2% of the full scale at 70°F, making it the go-to choice for tracking fan pressure indication and duct static pressure in commercial and industrial air handling systems.
Key Benefits- Resilient Design: The IP67-rated aluminum housing and silicone diaphragm provide long-term durability against environmental factors and over-pressure up to 15 psig.
- Simplified Installation: Dual 1/8" NPT taps (side and back) and included mounting hardware facilitate quick integration into existing panels or ductwork.
- High Visibility: A large 4-inch dial with a litho-printed scale and red-tipped pointer allows for clear distance viewing and immediate assessment of filter loading.
- Frictionless Movement: Patented magnetic technology ensures a rapid response to pressure changes without the maintenance of mechanical gears or toxic fluids.
Can the Dwyer 2006 be mounted in any orientation?
For maximum accuracy, this gage should be mounted with the diaphragm in a vertical position. Mounting it horizontally or at an angle may shift the zero point and affect calibration.
Is this gage compatible with corrosive gases?
The standard model is designed for air and non-combustible, non-corrosive gases. For applications involving specialty gases like hydrogen or natural gas, different diaphragm materials may be required.
How do I adjust the zero point on the Magnehelic 2006?
The zero adjustment screw is conveniently located on the front acrylic cover. You can zero the gage without removing the housing or disconnecting the process liness.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $91.91
-65%$91.91
$32.17Dwyer Instruments 2006 Pressure Gage
The Dwyer Instruments 2006 Magnehelic® differential pressure gage is the industry standard for monitoring low air and non-combustible gas pressures with a range of 0-6.0" w.c.. Trusted by contractors for filter monitoring and HVAC system balancing, this mechanical gage uses a frictionless magnetic movement that eliminates the risk of fluid evaporation or freezing associated with traditional manometers. Housed in a rugged IP67-rated die-cast aluminum case, the unit resists shock and vibration, ensuring high-accuracy readings in demanding environments. For versatile installation, the gage features 1/8" female NPT process connections on both the side and back, allowing for seamless flush mount or surface mounting. The 4-inch diameter dial face is protected by a clear acrylic cover, providing an undistorted view of the red-tipped pointer. Engineered for precision, it maintains an accuracy within 2% of the full scale at 70°F, making it the go-to choice for tracking fan pressure indication and duct static pressure in commercial and industrial air handling systems.
Key Benefits- Resilient Design: The IP67-rated aluminum housing and silicone diaphragm provide long-term durability against environmental factors and over-pressure up to 15 psig.
- Simplified Installation: Dual 1/8" NPT taps (side and back) and included mounting hardware facilitate quick integration into existing panels or ductwork.
- High Visibility: A large 4-inch dial with a litho-printed scale and red-tipped pointer allows for clear distance viewing and immediate assessment of filter loading.
- Frictionless Movement: Patented magnetic technology ensures a rapid response to pressure changes without the maintenance of mechanical gears or toxic fluids.
Can the Dwyer 2006 be mounted in any orientation?
For maximum accuracy, this gage should be mounted with the diaphragm in a vertical position. Mounting it horizontally or at an angle may shift the zero point and affect calibration.
Is this gage compatible with corrosive gases?
The standard model is designed for air and non-combustible, non-corrosive gases. For applications involving specialty gases like hydrogen or natural gas, different diaphragm materials may be required.
How do I adjust the zero point on the Magnehelic 2006?
The zero adjustment screw is conveniently located on the front acrylic cover. You can zero the gage without removing the housing or disconnecting the process liness.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
