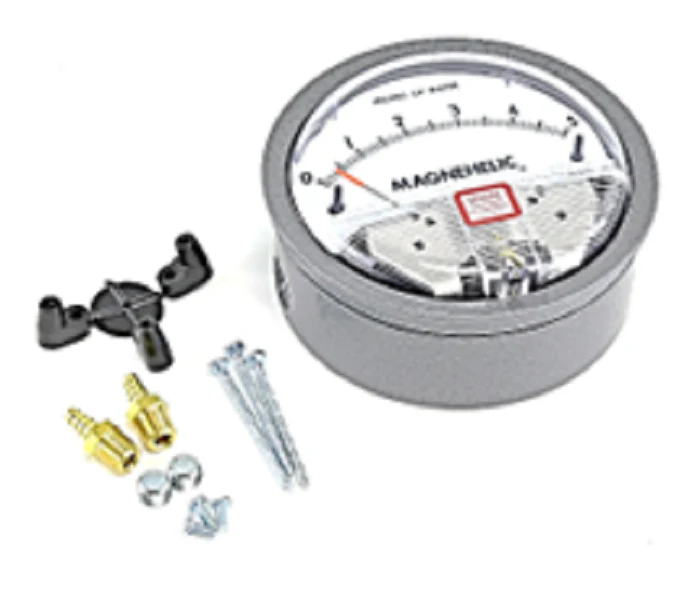

Dwyer Instruments 2005 Pressure Gage
Engineered as the industry standard for monitoring low-pressure air and non-combustible gases, the Dwyer Instruments 2005 Magnehelic Pressure Gage delivers an accurate 0-5.0" w.c. range for critical HVACR applications. This differential pressure gage utilizes a frictionless movement with a cobalt magnet and silicone diaphragm, ensuring a ±2% full-scale accuracy without the risk of fluid evaporation or freezing common in traditional manometers. Designed for the field, the 4" diameter dial face is housed in a rugged die-cast aluminum case that resists shock and vibration. With dual 1/8" female NPT process connections located on the back and side, this unit supports both flange or flush mount configurations, making it a highly compatible choice for filter monitoring, fan pressure indication, and clean room pressure verification. For contractors managing building automation systems, the 2005 model provides reliable, repeatable performance in demanding environments from 20 to 140°F.
Key Benefits- Frictionless Movement: Employs a unique magnetic linkage that eliminates mechanical wear and provides rapid response to pressure changes.
- Versatile Mounting: Includes hardware for both surface and flush mounting, adapting to various control panels and ductwork.
- Environmental Rating: The IP67-rated housing ensures the Magnehelic gauge remains protected against dust and moisture in mechanical rooms.
- Maintenance-Free Design: Operates without power and features an accessible zero-adjustment screw for quick field calibration.
- Overpressure Protection: Integrated blow-out plug prevents internal damage during unexpected pressure spikes up to 15 psig.
Can the Dwyer 2005 be used to measure air velocity?
Yes, when paired with a Pitot tube, this differential pressure gage is commonly used to calculate air velocity and CFM in ductwork systems.
Is this gage compatible with hazardous gases?
The standard model is rated for air and non-combustible gases. For applications involving specific gases like hydrogen, a Buna-N diaphragm may be required; always verify your specific media compatibility before installation.
How do I plumb the connections for different mounting styles?
The unit features two sets of 1/8" female NPT process connections. Use the side ports for surface mounting and the back ports for flush mounting in a 4-1/2" diameter hole.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $91.91
-65%$91.91
$32.17Dwyer Instruments 2005 Pressure Gage
Engineered as the industry standard for monitoring low-pressure air and non-combustible gases, the Dwyer Instruments 2005 Magnehelic Pressure Gage delivers an accurate 0-5.0" w.c. range for critical HVACR applications. This differential pressure gage utilizes a frictionless movement with a cobalt magnet and silicone diaphragm, ensuring a ±2% full-scale accuracy without the risk of fluid evaporation or freezing common in traditional manometers. Designed for the field, the 4" diameter dial face is housed in a rugged die-cast aluminum case that resists shock and vibration. With dual 1/8" female NPT process connections located on the back and side, this unit supports both flange or flush mount configurations, making it a highly compatible choice for filter monitoring, fan pressure indication, and clean room pressure verification. For contractors managing building automation systems, the 2005 model provides reliable, repeatable performance in demanding environments from 20 to 140°F.
Key Benefits- Frictionless Movement: Employs a unique magnetic linkage that eliminates mechanical wear and provides rapid response to pressure changes.
- Versatile Mounting: Includes hardware for both surface and flush mounting, adapting to various control panels and ductwork.
- Environmental Rating: The IP67-rated housing ensures the Magnehelic gauge remains protected against dust and moisture in mechanical rooms.
- Maintenance-Free Design: Operates without power and features an accessible zero-adjustment screw for quick field calibration.
- Overpressure Protection: Integrated blow-out plug prevents internal damage during unexpected pressure spikes up to 15 psig.
Can the Dwyer 2005 be used to measure air velocity?
Yes, when paired with a Pitot tube, this differential pressure gage is commonly used to calculate air velocity and CFM in ductwork systems.
Is this gage compatible with hazardous gases?
The standard model is rated for air and non-combustible gases. For applications involving specific gases like hydrogen, a Buna-N diaphragm may be required; always verify your specific media compatibility before installation.
How do I plumb the connections for different mounting styles?
The unit features two sets of 1/8" female NPT process connections. Use the side ports for surface mounting and the back ports for flush mounting in a 4-1/2" diameter hole.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
