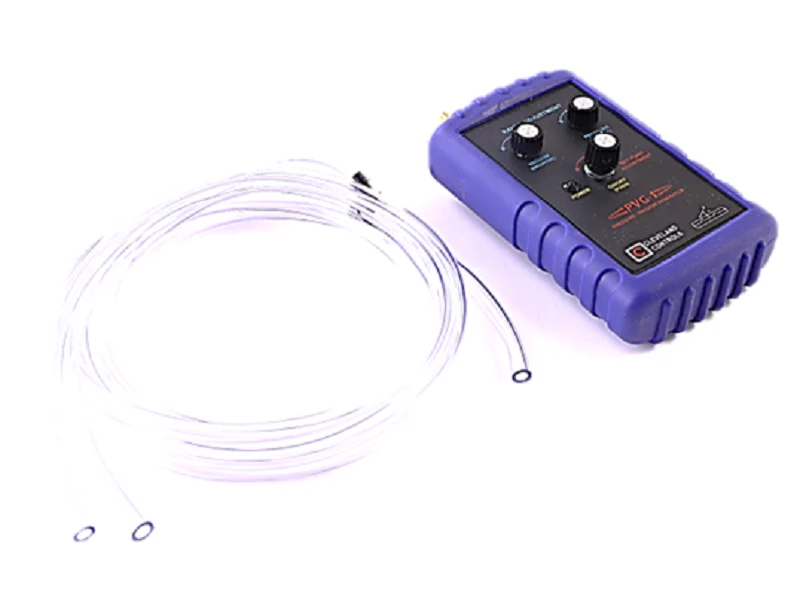

Cleveland Controls PVG-1 Generator
The Cleveland Controls PVG-1 is a high-precision Pressure/Vacuum Generator essential for any technician performing field calibration of differential pressure air flow sensing switches. This compact, handheld constant air source provides both positive and negative air flow, eliminating the need for bulky laboratory equipment when setting or identifying unknown set points on-site. Operating on three standard AA batteries, the unit ensures a minimum of 10 hours of continuous operation, making it a reliable staple for long service calls involving HVACR air pressure controls.
Engineered for technical accuracy, the PVG-1 features an output range of ±0.1"w.c. to ±12"w.c. with a robust control interface. The integrated coarse adjustment bleed valves allow for quick approximation of the target pressure or vacuum, while the fine-tune potentiometer enables surgical precision during the final air switch calibration. The unit includes a durable protective case and a tubing accessory kit that accepts 1/8" and 1/4" ID flexible tubing, ensuring immediate compatibility with standard manometers and multimeters in your diagnostic arsenal.
Key Benefits- Dual-Action Performance: Generates both pressure and vacuum in a single unit for testing all types of air flow sensing switches.
- Field-Ready Durability: Housed in a rugged protective case with an integral stand, built to withstand the demands of mechanical rooms.
- Precise Set Point Tuning: Separate coarse and fine-tune adjustments provide the granular control required for tight tolerance specifications.
- Complete Setup Compatibility: Slip-on connectors and included "Y" fitting ensure seamless connection to HVAC test instruments.
- What equipment is required to use the PVG-1 for calibration? To complete a calibration loop, you must pair the PVG-1 with a manometer to monitor pressure levels and a continuity meter to verify the electrical contact status of the switch.
- How do you handle separate pressure and vacuum ranges? The PVG-1 uses independent bleed valves; technicians should adjust the appropriate knob for the desired output while leaving the unused valve at its stop position to maintain system integrity.
- Can I use this for high-pressure industrial switches? This unit is specifically optimized for low-pressure differential pressure switches with a maximum range of 12" w.c.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $511.13
-65%$511.13
$178.90Cleveland Controls PVG-1 Generator
