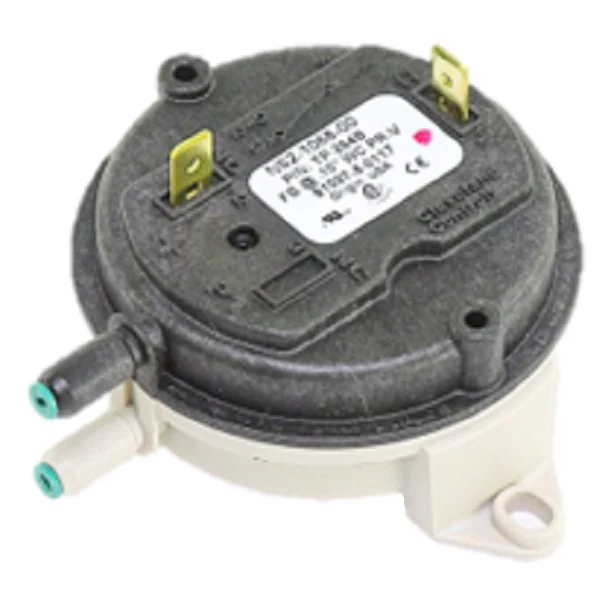

Cleveland Controls NS2-1068-00 Pressure Switch
The Cleveland Controls NS2-1068-00 Pressure Switch is a high-precision diaphragm-operated air pressure sensing switch designed for monitoring extremely low positive, vacuum, or differential pressures. This unit is calibrated to a fixed 0.10" w.c. set point, making it a critical component for verifying combustion blower operation or ensuring proper airflow in HVAC/R burner systems and rooftop units. Built for technical reliability, it features a rugged polycarbonate housing and a silicone diaphragm, ensuring consistent repeatability across thousands of cycles in demanding environments.
The NS2-1068-00 is equipped with integrated mounting feet for a stable, secure install on flat surfaces, eliminating the need for additional brackets in tight furnace cabinetry. As a fixed set point pressure switch, it provides contractors with a "install and forget" solution that prevents field tampering and maintains strict 0.10 inch water column specifications. This OEM-quality control connects easily via standard 1/4" compression fittings or slip-on connectors, integrating seamlessly with furnace draft inducer circuits and safety interlock loops.
Key Performance Benefits
- Fixed 0.10" WC Trip Point: Ensures precise monitoring of low-pressure differentials for safety compliance.
- Integrated Mounting Feet: Simplifies installation for technicians by providing a stable, pre-configured mounting profile.
- Sensitive Silicone Diaphragm: Responds instantly to subtle changes in airflow to prevent combustion errors or equipment damage.
- SPDT Switch Action: Versatile electrical configuration allows for "normally open" or "normally closed" wiring to control fans, dampers, or alarms.
- OEM Reliability: Manufactured by Cleveland Controls, the industry standard for air differential pressure switches in commercial and residential heating.
Common Technical Questions
What is the maximum pressure rating for this switch?
The NS2 series is typically rated for a maximum pressure of 0.5 psi (13.8" w.c.), though it is specifically calibrated to actuate at the 0.10" w.c. threshold.
Can the NS2-1068-00 be used for both positive and negative pressure?
Yes, this switch is designed to sense positive, vacuum, or differential pressure depending on how the tubing is connected to the high and low ports.
What are the electrical ratings for the internal switch?
This unit features a Snap-Action SPDT switch typically rated for 1/10 HP at 120 to 277 VAC, suitable for most control circuit pilot duties.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
