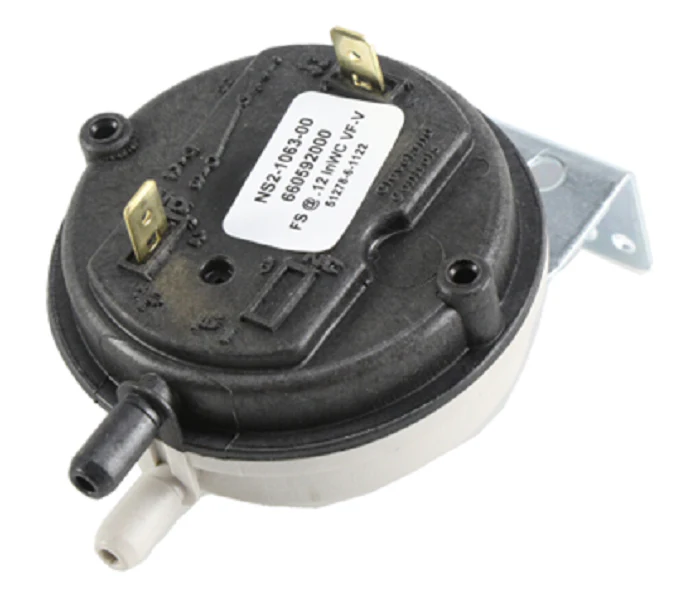

Cleveland Controls NS2-1063-00 Pressure Switch
The Cleveland Controls NS2-1063-00 is an essential air pressure switch designed for precision monitoring in both residential and light commercial HVAC applications. Engineered with a durable glass-filled polycarbonate housing and a high-grade silicone diaphragm, this differential pressure switch maintains stability even under fluctuating temperatures ranging from -40 to 180 ºF. For contractors overseeing furnace safety or draft inducer performance, the NS2 series provides a narrow switching differential and low set point tolerance, ensuring the air flow proving switch activates exactly when needed to prevent hazardous operation.
This model features color-coded ports—black for positive pressure (P1) and gray for negative or vacuum pressure (P2)—simplifying lead identification during field installs. The integral snap-acting switch provides reliable electrical continuity, while the 1/4-inch 90-degree male quick-connect terminals allow for seamless integration with standard wiring harnesses. Whether you are sensing positive, negative, or differential air pressure, the NS2-1063-00 is a rugged, contaminant-free solution for critical HVAC pressure switch replacements.
Key Benefits
- Optimized Compatibility: Designed for high-volume OEM furnace and boiler applications, ensuring a precise match for critical safety circuits.
- Versatile Sensing: Capable of sensing positive, negative, or differential pressure with factory-calibrated precision.
- Rugged Construction: Glass-filled polycarbonate body and silicone diaphragm offer superior resistance to combustion by-products.
- Simplified Installation: Color-coded high/low ports and universal mounting feet reduce onsite labor time for technicians.
- Reliable Performance: Rated for up to 100,000 cycles at maximum electrical load, providing long-term system stability.
Common Questions
How do I identify the high and low pressure ports?
The Cleveland Controls NS2-1063-00 uses a color-coding system: the black port is for positive (high) pressure, and the gray port is for negative (low) pressure or vacuum lines.
Can this switch be mounted in any orientation?
For maximum accuracy, the switch should be calibrated and installed with the diaphragm in a vertical plane. Avoid mounting with sample line connections pointing upward to prevent moisture accumulation.
What type of tubing is compatible with the connectors?
The integral slip-on connectors are 1/4" OD and are designed to accept standard 3/16" ID flexible tubing common in HVAC draft inducer assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $39.45
-65%$39.45
$13.81Cleveland Controls NS2-1063-00 Pressure Switch
The Cleveland Controls NS2-1063-00 is an essential air pressure switch designed for precision monitoring in both residential and light commercial HVAC applications. Engineered with a durable glass-filled polycarbonate housing and a high-grade silicone diaphragm, this differential pressure switch maintains stability even under fluctuating temperatures ranging from -40 to 180 ºF. For contractors overseeing furnace safety or draft inducer performance, the NS2 series provides a narrow switching differential and low set point tolerance, ensuring the air flow proving switch activates exactly when needed to prevent hazardous operation.
This model features color-coded ports—black for positive pressure (P1) and gray for negative or vacuum pressure (P2)—simplifying lead identification during field installs. The integral snap-acting switch provides reliable electrical continuity, while the 1/4-inch 90-degree male quick-connect terminals allow for seamless integration with standard wiring harnesses. Whether you are sensing positive, negative, or differential air pressure, the NS2-1063-00 is a rugged, contaminant-free solution for critical HVAC pressure switch replacements.
Key Benefits
- Optimized Compatibility: Designed for high-volume OEM furnace and boiler applications, ensuring a precise match for critical safety circuits.
- Versatile Sensing: Capable of sensing positive, negative, or differential pressure with factory-calibrated precision.
- Rugged Construction: Glass-filled polycarbonate body and silicone diaphragm offer superior resistance to combustion by-products.
- Simplified Installation: Color-coded high/low ports and universal mounting feet reduce onsite labor time for technicians.
- Reliable Performance: Rated for up to 100,000 cycles at maximum electrical load, providing long-term system stability.
Common Questions
How do I identify the high and low pressure ports?
The Cleveland Controls NS2-1063-00 uses a color-coding system: the black port is for positive (high) pressure, and the gray port is for negative (low) pressure or vacuum lines.
Can this switch be mounted in any orientation?
For maximum accuracy, the switch should be calibrated and installed with the diaphragm in a vertical plane. Avoid mounting with sample line connections pointing upward to prevent moisture accumulation.
What type of tubing is compatible with the connectors?
The integral slip-on connectors are 1/4" OD and are designed to accept standard 3/16" ID flexible tubing common in HVAC draft inducer assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
