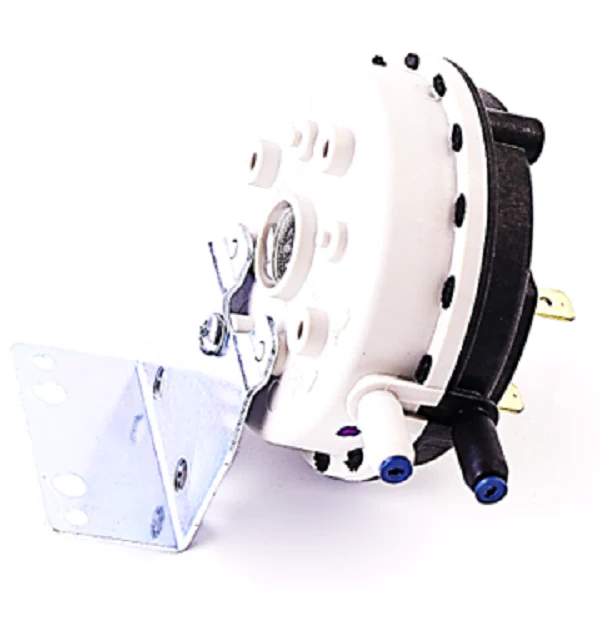

Cleveland Controls NS2-1020-01 Pressure Switch
As a key component for airflow monitoring, the Cleveland Controls NS2-1020-01 Pressure Switch is engineered for high-accuracy sensing of positive, negative, or differential air pressure. This HVAC air pressure switch features a compact glass-filled polycarbonate housing and a high-stability silicone diaphragm, making it a reliable choice for monitoring ductwork pressure, controlling dampers, or verifying fan operation. With a fixed set point of 1.50" w.c. and a narrow switching differential, this unit provides the precise feedback necessary for complex ventilation sequences and safety interlocks.
The NS2-1020-01 is designed for simplified field installation with an integrated mounting bracket and color-coded ports (Black for positive, Gray for negative). Its snap-acting SPDT switch mechanism supports various electrical loads, including 5 Amps resistive at 120 to 277 Vac, ensuring compatibility with standard HVAC replacement parts and OEM specifications. This differential air pressure switch is UL and CSA certified, built to handle the rigorous demanding environments of commercial and residential HVACR systems without compromising signal integrity.
Key Benefits
- Precise Pressure Calibration: Factory-set at 1.50" w.c. to ensure consistent system performance and safety across air handling units.
- Durable Construction: The glass-filled polycarbonate body offers superior thermal stability and resistance to contaminants found in combustion byproducts.
- Simplified Integration: Features 1/4" quick-connect terminals and a universal mounting bracket for fast replacement in the field.
- Reliable Switching: Utilizes a snap-acting mechanism rated for 100,000 cycles, providing long-term operation in high-demand airflow applications.
- Clear Identification: Color-coded sample line connectors prevent plumbing errors during installation or maintenance.
Common Questions
- Can this switch be used to monitor filter status? Yes, the 1.50" w.c. threshold is frequently used to detect significant pressure drops across filtration banks or to signal a blocked duct condition.
- Does the orientation of the switch matter? For maximum accuracy, it is standard practice to mount the diaphragm in a vertical position unless the specific application allows for a calibrated custom angle.
- What types of tubing are compatible with the ports? The integrated connectors are designed to accept 1/4" OD or 3/16" ID flexible tubing, ensuring a secure fit for standard air sampling lines.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
