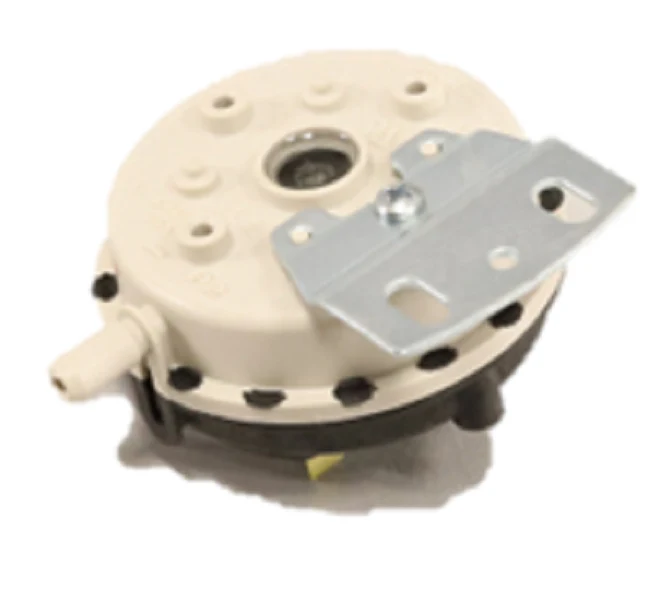

Cleveland Controls NS2-1015-00 Pressure Switch
The Cleveland Controls NS2-1015-00 is an industrial-grade air pressure sensing switch specifically engineered for monitoring thin-film fluctuations in residential and light commercial HVAC induction systems. This differential pressure switch features a high-stability, glass-filled polycarbonate housing that protects a sensitive silicone diaphragm, ensuring precise draft pressure detection. With a fixed setpoint of .30" w.c., this component is essential for validating proper flow through the combustion chamber and preventing ignition if venting restrictions or inducer motor failure occur. The unit includes a pre-installed mounting bracket for streamlined vertical installation, while the SPDT contact configuration allows for integration into both normally open and normally closed safety circuits. Rated for 15A at 120VAC, this direct replacement pressure switch provides the reliability needed for high-cycle environments and critical safety interlocks.
Key Benefits- Precise Setpoint Accuracy: Factory-calibrated at .30" w.c. to ensure consistent furnace draft monitoring and safe gas valve sequencing.
- Durable Construction: Features fine silver contacts and a rugged polycarbonate body to withstand temperature extremes from -40°F to 190°F.
- Versatile Compatibility: Equipped with 1/4" quick-connect terminals and standard sample line connectors that accept 3/16" ID flexible tubing.
- Universal Sensing: Capable of sensing positive, negative, or differential air pressure, making it a versatile tool for static pressure measurement across filters or coils.
Is the NS2-1015-00 field adjustable?
While the NS2 series includes adjustable models, the NS2-1015-00 is a factory-calibrated unit with a fixed setpoint of .30" w.c. for high-precision safety applications.
What causes a pressure switch to trip frequently?
Technicians should inspect the venting system for blockages (such as bird nests or ice), check for moisture in the pressure tubing, or verify that the inducer motor is reaching full RPM to maintain the required pressure differential.
How should this switch be mounted?
For optimal performance, mount the switch with the diaphragm in a vertical position. This prevents condensation from accumulating on the diaphragm, which can lead to premature failure or inaccurate switching.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
