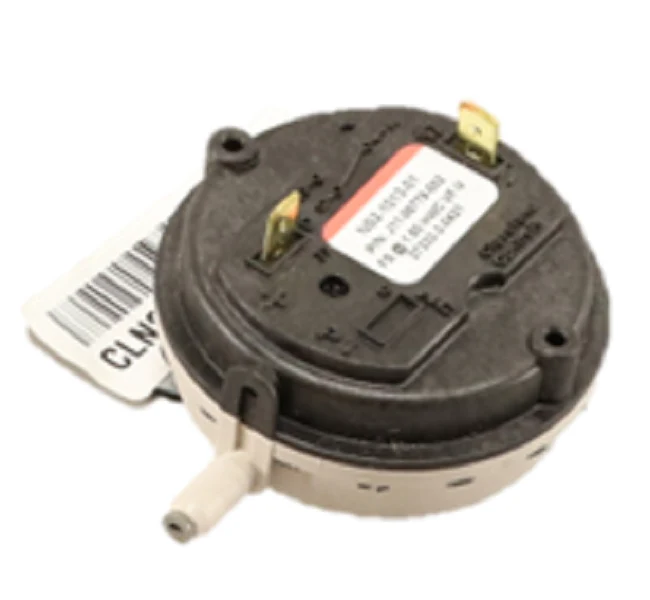

Cleveland Controls NS2-1013-01 Pressure Switch
The Cleveland Controls NS2-1013-01 Pressure Switch is an OEM-grade air flow sensing solution designed for high-accuracy performance in demanding HVACR environments. This 0.08" w.c. pressure switch features a factory-calibrated, non-adjustable set point, ensuring repeatable differential air pressure monitoring for furnace draft inducer circuits and ventilation systems. Constructed with a glass-filled polycarbonate housing and a high-stability silicone diaphragm, the NS2-1013-01 provides a narrow switching differential and low set point tolerance. The unit is equipped with a pressure switch mounting bracket for secure installation and utilizes color-coded ports (Black for High/Positive, Gray for Low/Negative) to streamline field integration. This HVAC air pressure switch is engineered to withstand temperatures from -40°F to 180°F, making it a reliable component for sensing positive, negative, or differential pressure in combustion and air-handling applications.
Key Benefits- Precise 0.08" w.c. Set Point: Factory-calibrated for exact triggering in low-pressure draft and airflow applications.
- Durable Construction: Glass-filled polycarbonate body offers professional-grade stability and contaminant resistance.
- Simplified Installation: Includes an integral mounting bracket and 1/4" male quick-connect terminals for standard wiring.
- Versatile Application: Capable of sensing positive, negative, or differential pressure across the heat exchanger or blower.
- Color-Coded Ports: Clear identification of P1 (high) and P2 (low) inlets reduces error during sample line connection.
What is the orientation requirement for mounting?
This switch should typically be mounted with the diaphragm in a vertical position to maintain the calibrated 0.08" w.c. set point accuracy, as gravity can affect the sensitivity of the internal mechanism if tilted.
Can this switch be used for both positive and negative pressure?
Yes, the NS2-1013-01 is a differential switch. You can connect it to a positive pressure source at the black port (P1), a negative source at the gray port (P2), or both to measure the pressure drop across a component.
Is the set point adjustable in the field?
No, this specific model is factory-set at 0.08" w.c. for precise safety and operational sequences. If your application requires a different threshold, verify the manifold pressure requirements of the specific equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
