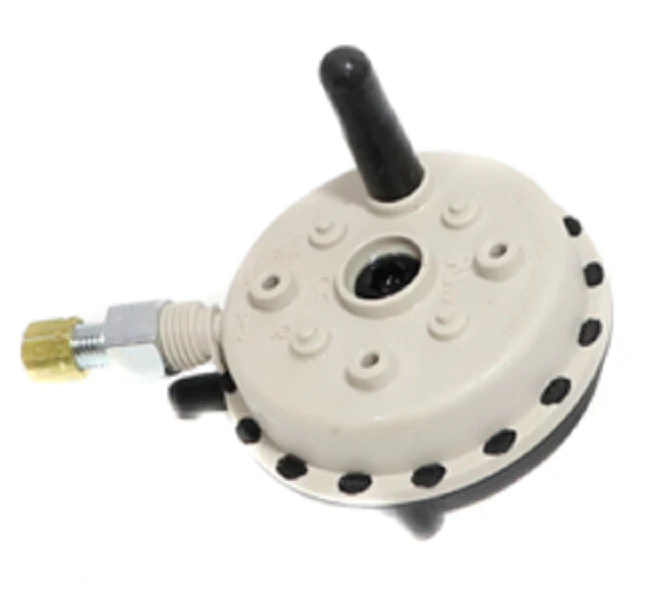

Cleveland Controls NS2-0462-00 Pressure Switch
The Cleveland Controls NS2-0462-00 is an industrial-grade air pressure sensing switch designed for precision monitoring in HVAC and combustion systems. Engineered with a durable glass-filled polycarbonate body, this switch provides high stability when sensing positive, negative, or differential air pressure. This specific model features a factory-calibrated set point and includes an integrated mounting bracket and compression fitting to streamline field replacement. The post-cured silicone diaphragm ensures a long service life, exceeding 100,000 cycles, while maintaining a narrow switching differential and low set point tolerance even across a wide operating temperature range from -40°F to 180°F.
For contractors, the NS2-0462-00 is a reliable solution for proving airflow in furnace draft inducers or air handling units. It utilizes 90-degree quick-connect terminals for standard 1/4-inch electrical connections and is compatible with various sample line tubing via its color-coded ports. Whether managing 1/10 HP electrical loads at 120V AC or low-voltage 24V AC pilot duty, this series delivers the contaminant-free construction required for sensitive pressure-dependent safety circuits.
Key Benefits:- Versatile Pressure Monitoring: Capable of sensing positive, negative, or differential pressure accurately across diverse HVAC applications.
- Sturdy Construction: The glass-filled polycarbonate housing offers superior heat resistance and impact protection in mechanical rooms.
- Simplified Installation: Comes complete with a factory-installed mounting bracket and compression fitting, reducing the need for extra hardware.
- Stable Calibration: Features factory-calibrated set points designed to hold tolerance without drifting over time or through temperature shifts.
- Broad Compatibility: Standard silver contacts support various voltage configurations, including 24V, 120V, and 277V AC systems.
- Can this switch be mounted in any orientation? For optimal accuracy and to reach the lowest specified set point, the diaphragm should be mounted in a vertical plane. Avoid mounting with sample line connections facing upward to prevent moisture accumulation.
- How do I identify the pressure ports? The ports are color-coded for ease of identification: the black port is traditionally for positive pressure, while the gray port handles negative (vacuum) pressure.
- What tubing is compatible with the compression fitting? The included compression fitting is designed for 1/4-inch OD rigid or semi-rigid tubing, providing a secure, leak-free seal for critical airflow proving.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
