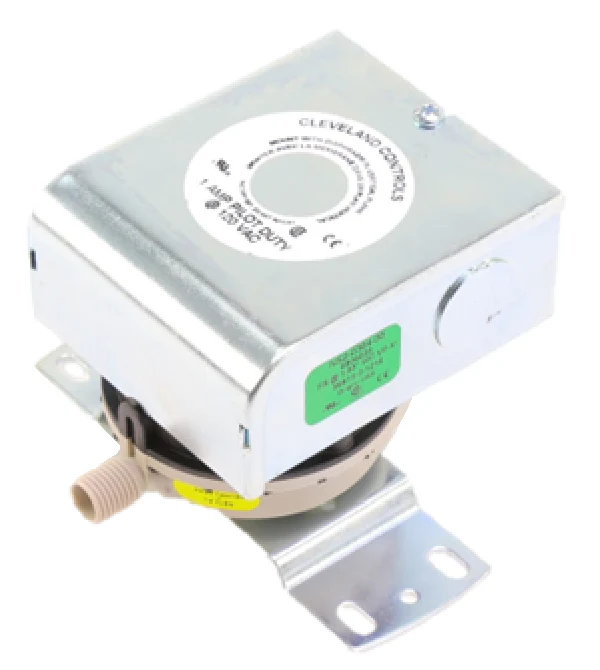

Cleveland Controls NS2-0364-00 Pressure Switch
The Cleveland Controls NS2-0364-00 is an OEM-grade air pressure sensing switch specifically engineered to monitor positive, negative, or differential air pressure in residential and light commercial HVAC systems. This HVAC pressure switch features a factory-calibrated set point of 1.05" w.c., ensuring precise airflow verification before ignition or system operation. Constructed with a glass-filled polycarbonate housing and a precision-molded diaphragm, the unit utilizes an integral snap-action SPDT switching mechanism for high repeatability. It serves as a superior replacement air pressure switch for obsolete RSS-498-364 models. The hardware includes an integrated mounting bracket and color-coded ports to streamline differential pressure switch installation while preventing pneumatic cross-connection. Field-proven for pilot duty and low-voltage control circuits, this component provides the rugged reliability required for high-cycle vent pressure monitoring.
Key Benefits:- Factory Calibrated 1.05" w.c. Set Point: Ensures dead-on accuracy for critical airflow and vent pressure safety interlocks.
- OEM Compatibility: Designed as a direct drop-in replacement for Cleveland Controls RSS-498-364 series.
- Durable Construction: Glass-filled polycarbonate housing provides thermal stability and impact resistance in demanding mechanical rooms.
- Simplified Wiring: Equipped with standard 1/4" quick-connect terminals for seamless integration with existing furnace control boards.
- Versatile Monitoring: Capable of sensing positive, negative, or differential pressure through clearly identified high and low ports.
- What is the proper mounting orientation for this switch? For maximum accuracy and to prevent moisture accumulation on the diaphragm, the switch should be mounted vertically with the pressure ports facing downward.
- Can this switch replace different set point models? No, pressure switches are safety devices; you must match the 1.05" w.c. rating of the 0364-00 to your equipment’s original specifications.
- Does this unit handle high voltage? This switch is typically rated for pilot duty (125VA) and is intended for use in 24V or 120V control circuits, not for direct motor loads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
