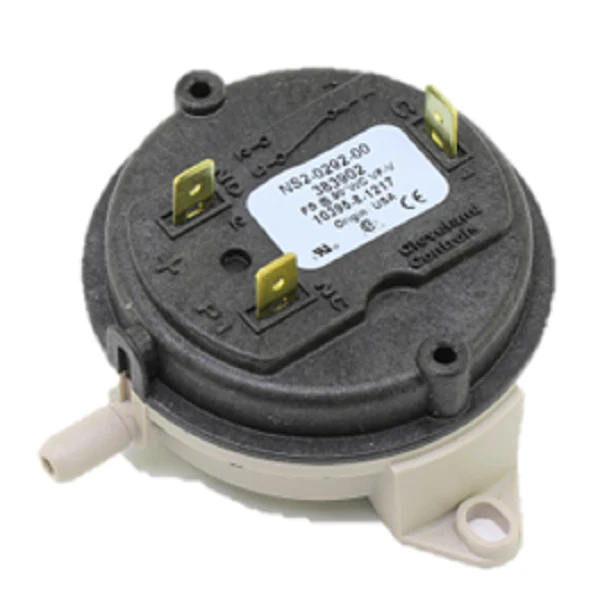

Cleveland Controls NS2-0292-00 Pressure Switch
As an HVAC professional, you know that consistent airflow verification is non-negotiable for system safety. The Cleveland Controls NS2-0292-00 Pressure Switch is a high-reliability, factory-calibrated air differential pressure switch designed to monitor negative, positive, or differential pressure in residential and commercial furnaces, boilers, and air handlers. This specific model features a fixed .90" w.c. setpoint (falling), making it an essential component for proving draft in high-efficiency combustion systems. Built with a rugged glass-filled polycarbonate housing, it resists contaminants and provides a stable switching differential across a standard operating temperature range of -40°F to 180°F. The unit includes an integrated mounting bracket for precise vertical installation, which is critical for maintaining accurate diaphragm movement. Utilizing SPDT (Single Pole Double Throw) or SPNO/SPNC circuitry with 1/4" quick-connect terminals, the Cleveland Controls NS2-0292-00 ensures the burner circuit only closes when the inducer motor establishes proper static pressure. Whether you are performing a pressure switch replacement or diagnosing a furnace pressure switch error, this 0.9" wc pressure switch delivers the repeatability needed to prevent common HVAC pressure switch troubleshooting calls caused by drifting setpoints.
Key Benefits
- Precision Calibrated: Factory-set at .90" w.c. to ensure exact safety compliance without the need for field adjustment.
- Durable Construction: The glass-filled polycarbonate body provides superior dimensional stability in high-heat environments.
- Universal Versatility: Dual-port design allows for positive, negative, or differential air pressure sensing.
- Efficient Installation: Equipped with a pre-installed mounting bracket and color-coded P1 (positive/black) and P2 (negative/gray) ports.
- High Reliability: Designed for an extended lifecycle, reducing nuisance trips for HVAC contractors and facilities managers.
Common Questions
What does a .90" w.c. setpoint mean for this switch?
This switch is calibrated to "prove" the draft when air pressure reaches the specified threshold. In most applications, it will change state (open or close the circuit) as the pressure falls to .90" w.c., indicating a potential blockage or inducer failure.
Can this switch be mounted in any orientation?
For maximum accuracy and to prevent moisture migration into the diaphragm, this NS2-0292-00 pressure switch should be mounted with the diaphragm in a vertical plane. Avoid mounting with sample line connectors pointing upwards.
What size tubing is compatible with the ports?
The integral sample line connectors on this Cleveland Controls model typically accept standard 3/16" or 1/4" ID flexible tubing, commonly used in most HVAC controls setups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $60.82
-65%$60.82
$21.29Cleveland Controls NS2-0292-00 Pressure Switch
As an HVAC professional, you know that consistent airflow verification is non-negotiable for system safety. The Cleveland Controls NS2-0292-00 Pressure Switch is a high-reliability, factory-calibrated air differential pressure switch designed to monitor negative, positive, or differential pressure in residential and commercial furnaces, boilers, and air handlers. This specific model features a fixed .90" w.c. setpoint (falling), making it an essential component for proving draft in high-efficiency combustion systems. Built with a rugged glass-filled polycarbonate housing, it resists contaminants and provides a stable switching differential across a standard operating temperature range of -40°F to 180°F. The unit includes an integrated mounting bracket for precise vertical installation, which is critical for maintaining accurate diaphragm movement. Utilizing SPDT (Single Pole Double Throw) or SPNO/SPNC circuitry with 1/4" quick-connect terminals, the Cleveland Controls NS2-0292-00 ensures the burner circuit only closes when the inducer motor establishes proper static pressure. Whether you are performing a pressure switch replacement or diagnosing a furnace pressure switch error, this 0.9" wc pressure switch delivers the repeatability needed to prevent common HVAC pressure switch troubleshooting calls caused by drifting setpoints.
Key Benefits
- Precision Calibrated: Factory-set at .90" w.c. to ensure exact safety compliance without the need for field adjustment.
- Durable Construction: The glass-filled polycarbonate body provides superior dimensional stability in high-heat environments.
- Universal Versatility: Dual-port design allows for positive, negative, or differential air pressure sensing.
- Efficient Installation: Equipped with a pre-installed mounting bracket and color-coded P1 (positive/black) and P2 (negative/gray) ports.
- High Reliability: Designed for an extended lifecycle, reducing nuisance trips for HVAC contractors and facilities managers.
Common Questions
What does a .90" w.c. setpoint mean for this switch?
This switch is calibrated to "prove" the draft when air pressure reaches the specified threshold. In most applications, it will change state (open or close the circuit) as the pressure falls to .90" w.c., indicating a potential blockage or inducer failure.
Can this switch be mounted in any orientation?
For maximum accuracy and to prevent moisture migration into the diaphragm, this NS2-0292-00 pressure switch should be mounted with the diaphragm in a vertical plane. Avoid mounting with sample line connectors pointing upwards.
What size tubing is compatible with the ports?
The integral sample line connectors on this Cleveland Controls model typically accept standard 3/16" or 1/4" ID flexible tubing, commonly used in most HVAC controls setups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
