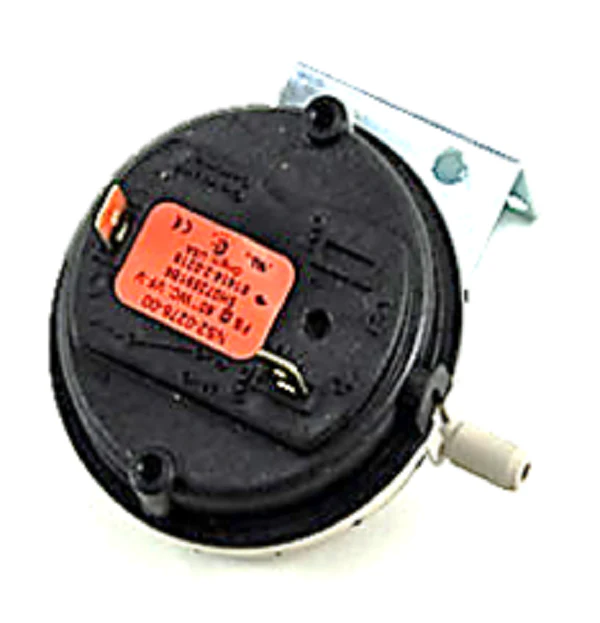

Cleveland Controls NS2-0276-00 Pressure Switch
The Cleveland Controls NS2-0276-00 Pressure Switch is a high-precision airflow monitoring solution engineered for demanding HVAC and industrial environments. This OEM pressure sensing switch features a factory-calibrated set point of .60" w.c., ensuring critical safety and performance thresholds are met in positive, negative, or differential pressure applications. Built with a rugged, glass-filled polycarbonate housing and a high-stability silicone diaphragm, the NS2 series is designed to handle combustion by-products and maintains a narrow switching differential throughout its service life.
For the field technician, this unit simplifies installation with its integral mounting bracket and 90-degree male quick-connect spade terminals. The SPST (Single Pole Single Throw) electrical configuration is rated for primary control circuits, while the color-coded ports (Black for positive, Gray for negative) eliminate connectivity errors during high-volume replacements. When troubleshooting inducer motor performance or flue gas venting, the Cleveland Controls air switch provides the reliable set point tolerance required for non-adjustable, safety-critical airflow proving.
Key Benefits
- Precision Calibration: Factory-set at .60" w.c. to meet specific OEM equipment specifications without the risk of field tampering.
- Industrial-Grade Durability: Glass-filled polycarbonate body offers superior thermal stability and resistance to harsh environmental contaminants.
- Versatile Application: Capable of sensing positive, negative, or differential air pressure for furnaces, water heaters, and air handlers.
- Streamlined Mounting: Features an integrated bracket and versatile port orientations for quick HVAC pressure switch replacement.
Common Questions
- Is this switch adjustable? No, the NS2-0276-00 is a factory-calibrated, non-adjustable switch designed for specific 0.60" w.c. set points.
- What tubing size is compatible? The standard sample line connectors are designed to accept 3/16" I.D. flexible tubing.
- Can I mount this in any orientation? For maximum accuracy and to maintain the specific set point, the diaphragm should be mounted in the vertical plane.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $60.82
-65%$60.82
$21.29Cleveland Controls NS2-0276-00 Pressure Switch
The Cleveland Controls NS2-0276-00 Pressure Switch is a high-precision airflow monitoring solution engineered for demanding HVAC and industrial environments. This OEM pressure sensing switch features a factory-calibrated set point of .60" w.c., ensuring critical safety and performance thresholds are met in positive, negative, or differential pressure applications. Built with a rugged, glass-filled polycarbonate housing and a high-stability silicone diaphragm, the NS2 series is designed to handle combustion by-products and maintains a narrow switching differential throughout its service life.
For the field technician, this unit simplifies installation with its integral mounting bracket and 90-degree male quick-connect spade terminals. The SPST (Single Pole Single Throw) electrical configuration is rated for primary control circuits, while the color-coded ports (Black for positive, Gray for negative) eliminate connectivity errors during high-volume replacements. When troubleshooting inducer motor performance or flue gas venting, the Cleveland Controls air switch provides the reliable set point tolerance required for non-adjustable, safety-critical airflow proving.
Key Benefits
- Precision Calibration: Factory-set at .60" w.c. to meet specific OEM equipment specifications without the risk of field tampering.
- Industrial-Grade Durability: Glass-filled polycarbonate body offers superior thermal stability and resistance to harsh environmental contaminants.
- Versatile Application: Capable of sensing positive, negative, or differential air pressure for furnaces, water heaters, and air handlers.
- Streamlined Mounting: Features an integrated bracket and versatile port orientations for quick HVAC pressure switch replacement.
Common Questions
- Is this switch adjustable? No, the NS2-0276-00 is a factory-calibrated, non-adjustable switch designed for specific 0.60" w.c. set points.
- What tubing size is compatible? The standard sample line connectors are designed to accept 3/16" I.D. flexible tubing.
- Can I mount this in any orientation? For maximum accuracy and to maintain the specific set point, the diaphragm should be mounted in the vertical plane.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
