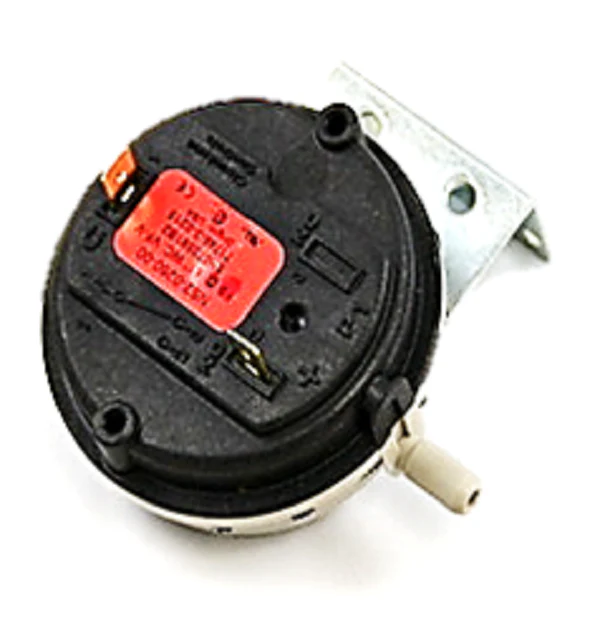

Cleveland Controls NS2-0260-00 Pressure Switch
The Cleveland Controls NS2-0260-00 is an industrial-grade air pressure sensing switch specifically engineered for high-accuracy performance in residential and light commercial HVAC systems. This SPDT (Single Pole Double Throw) pressure switch features a factory-calibrated set point of 0.61" w.c., making it a critical component for proving airflow and monitoring differential pressure in furnaces, boilers, and air handling units. Constructed with a glass-filled polycarbonate housing and a post-cured silicone diaphragm, the NS2-0260-00 ensures long-term stability and contaminant-free operation even in demanding environments with temperatures ranging from -40°F to 180°F.
Designed for seamless field replacement, this 0.61" w.c. pressure switch includes an integrated mounting bracket for secure installation in any vertical plane. The high and low pressure ports are color-coded—black for positive and gray for negative—to simplify the connection of 3/16" ID flexible tubing. With 1/4" male 90-degree quick-connect terminals and a maximum pressure rating of 14" w.c., this unit provides reliable electrical switching action for 24V to 277V AC circuits. Whether you are troubleshooting induction blowers or ensuring proper combustion air levels, the Cleveland Controls NS2-0260-00 offers the precision required for professional-level maintenance and repair.
Key Benefits:- High Precision: Features a narrow switching differential and low set point tolerance for consistent safety proving.
- Rugged Housing: Glass-filled polycarbonate body provides superior impact resistance and thermal stability compared to standard plastics.
- Contractor Ready: Pre-installed mounting bracket and color-coded ports reduce downtime during field service calls.
- Broad Compatibility: Suitable for sensing positive, negative, or differential pressure across a wide array of OEM HVAC equipment.
- Reliable Switching: 100,000 cycle minimum life at maximum rated electrical load for durable operation in cycle-heavy applications.
- Can this switch be mounted horizontally? It is recommended to mount the unit with the diaphragm in a vertical plane to maintain the calibrated 0.61" w.c. set point accuracy.
- Does this switch support 24V control circuits? Yes, the snap-acting switch is rated for pilot duty applications including 24V, 120V, and 277V AC configurations.
- What size tubing do the ports accept? The integral slip-on connectors are designed to accept standard 3/16" ID flexible tubing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $60.82
-65%$60.82
$21.29Cleveland Controls NS2-0260-00 Pressure Switch
The Cleveland Controls NS2-0260-00 is an industrial-grade air pressure sensing switch specifically engineered for high-accuracy performance in residential and light commercial HVAC systems. This SPDT (Single Pole Double Throw) pressure switch features a factory-calibrated set point of 0.61" w.c., making it a critical component for proving airflow and monitoring differential pressure in furnaces, boilers, and air handling units. Constructed with a glass-filled polycarbonate housing and a post-cured silicone diaphragm, the NS2-0260-00 ensures long-term stability and contaminant-free operation even in demanding environments with temperatures ranging from -40°F to 180°F.
Designed for seamless field replacement, this 0.61" w.c. pressure switch includes an integrated mounting bracket for secure installation in any vertical plane. The high and low pressure ports are color-coded—black for positive and gray for negative—to simplify the connection of 3/16" ID flexible tubing. With 1/4" male 90-degree quick-connect terminals and a maximum pressure rating of 14" w.c., this unit provides reliable electrical switching action for 24V to 277V AC circuits. Whether you are troubleshooting induction blowers or ensuring proper combustion air levels, the Cleveland Controls NS2-0260-00 offers the precision required for professional-level maintenance and repair.
Key Benefits:- High Precision: Features a narrow switching differential and low set point tolerance for consistent safety proving.
- Rugged Housing: Glass-filled polycarbonate body provides superior impact resistance and thermal stability compared to standard plastics.
- Contractor Ready: Pre-installed mounting bracket and color-coded ports reduce downtime during field service calls.
- Broad Compatibility: Suitable for sensing positive, negative, or differential pressure across a wide array of OEM HVAC equipment.
- Reliable Switching: 100,000 cycle minimum life at maximum rated electrical load for durable operation in cycle-heavy applications.
- Can this switch be mounted horizontally? It is recommended to mount the unit with the diaphragm in a vertical plane to maintain the calibrated 0.61" w.c. set point accuracy.
- Does this switch support 24V control circuits? Yes, the snap-acting switch is rated for pilot duty applications including 24V, 120V, and 277V AC configurations.
- What size tubing do the ports accept? The integral slip-on connectors are designed to accept standard 3/16" ID flexible tubing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
