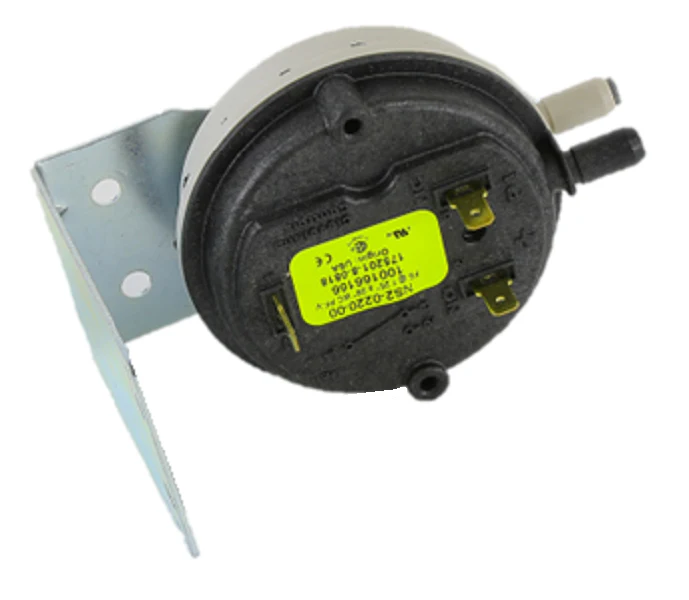

Cleveland Controls NS2-0220-00 Pressure Switch
The Cleveland Controls NS2-0220-00 Pressure Switch is a high-precision airflow sensing solution designed for rigorous HVACR and industrial applications. This SPDT pressure switch features a non-adjustable factory-calibrated set point of 1.25" w.c., providing critical monitoring of positive, negative, or differential air pressure. Built with a rugged glass-filled polycarbonate housing and a silicone diaphragm, the NS2 series ensures high stability and contaminant-free performance across varying thermal environments. It is an essential component for verifying proper draft inducer operation and maintaining safe burner combustion in furnace and boiler systems.
This airflow sensing switch is equipped with a versatile mounting bracket for vertical or custom-angle installation, ensuring compatibility with diverse equipment footprints. The integral snap-acting mechanism supports electrical loads up to 15A at 120/240 VAC, making it a reliable OEM replacement pressure switch for commercial and residential units. With a maximum pressure rating of 14" w.c. and color-coded ports (Black for positive, Gray for negative), this switch simplifies field installation for veteran technicians managing complex air distribution networks.
Key Benefits:
- Precise 1.25" w.c. Set Point: Ensures accurate triggering for differential air pressure monitoring in high-efficiency systems.
- Durable SPDT Configuration: Offers Single Pole Double Throw flexibility for diverse control logic and alarm circuit integration.
- Robust Polycarbonate Construction: Engineered with glass-filled materials to resist environmental degradation in demanding mechanical rooms.
- Universal Compatibility: Includes a mounting bracket and standard 1/4" quick-connect terminals for streamlined replacement in most furnace and air handler setups.
Common Questions:
Can the NS2-0220-00 sense both vacuum and positive pressure?
Yes, the NS2-0220-00 is designed to sense positive, negative, or differential pressure by utilizing the color-coded high (black) and low (gray) ports.
What is the maximum operating pressure for this switch?
While calibrated at 1.25" w.c., this switch is typically rated for a maximum pressure of 14" w.c. (approximately 0.5 psi) to prevent damage to the internal silicone diaphragm.
Is the set point on this model adjustable?
No, the NS2-0220-00 is a factory-calibrated air switch. For applications requiring field adjustment, look for Cleveland Controls models ending in "0X" or "0000".
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
