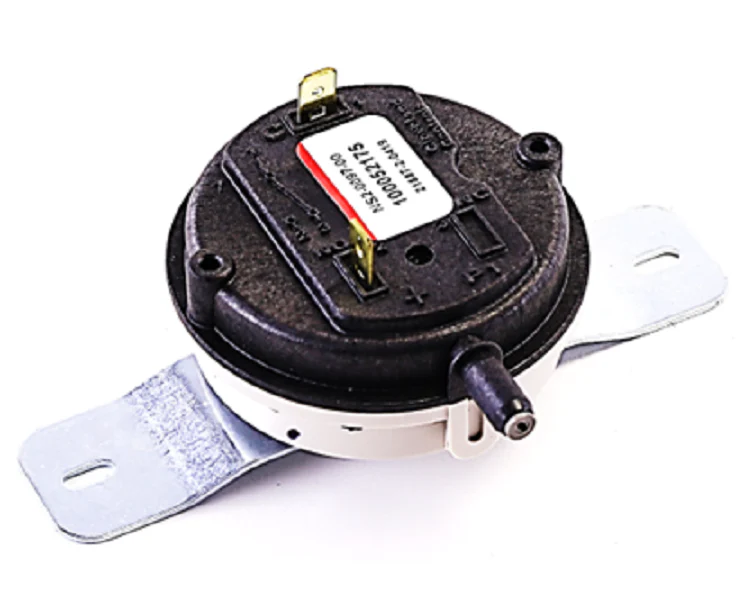

Cleveland Controls NS2-0097-00 Pressure Switch
The Cleveland Controls NS2-0097-00 is an industrial-grade air flow pressure sensing switch designed for high-accuracy monitoring in HVAC and burner applications. Engineered with a glass-filled polycarbonate housing, this unit provides exceptional stability and is built to withstand the rigors of mechanical rooms and industrial environments. This specific differential pressure switch is factory-calibrated with a 1" w.c. set point and a .05" w.c. switching differential, ensuring precise activation within tight tolerances. Featuring a .016" orifice, the NS2-0097-00 is optimized for sensing positive, negative, or differential pressure by tubing into its color-coded ports (Black for positive, Gray for negative). The integral snap-acting switch mechanism supports diverse electrical loads, typically rated for 1/10 HP or 5 Amps resistive, making it a reliable OEM replacement part for many high-volume furnace and air handling systems. Its contaminant-free construction and silicone diaphragm ensure long-term performance and rapid response to pressure fluctuations.
Key Benefits- Precise Calibration: Factory set at 1" w.c. with a narrow .05" w.c. differential for reliable system safety and performance.
- Rugged Build: The polycarbonate body and silicone diaphragm offer high resistance to temperature fluctuations and common combustion byproducts.
- Simplified Installation: Color-coded sample line connectors and 1/4" OD slip-on ports allow for fast, error-free HVAC pressure switch replacement.
- Versatile Application: Capable of monitoring positive, negative, or differential air pressure in both residential and commercial gas-fired equipment.
What does the .016" orifice do in this pressure switch?
The .016" orifice acts as a restrictor to dampen pressure pulsations, preventing the switch from "chattering" or rapid cycling in systems with turbulent airflow, which protects the snap-acting switch contacts.
Can the NS2-0097-00 be mounted in any orientation?
While the Series NS2 is versatile, these switches are typically calibrated for vertical mounting. Installing the switch at a custom angle may slightly shift the set point due to the weight of the internal diaphragm.
Is this switch compatible with multi-stage furnaces?
The NS2-0097-00 is a single-set-point switch. While it can be used in multi-stage systems as a dedicated high-fire or low-fire limit, always verify the specific inches water column requirements against the manufacturer’s technical data sheet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
