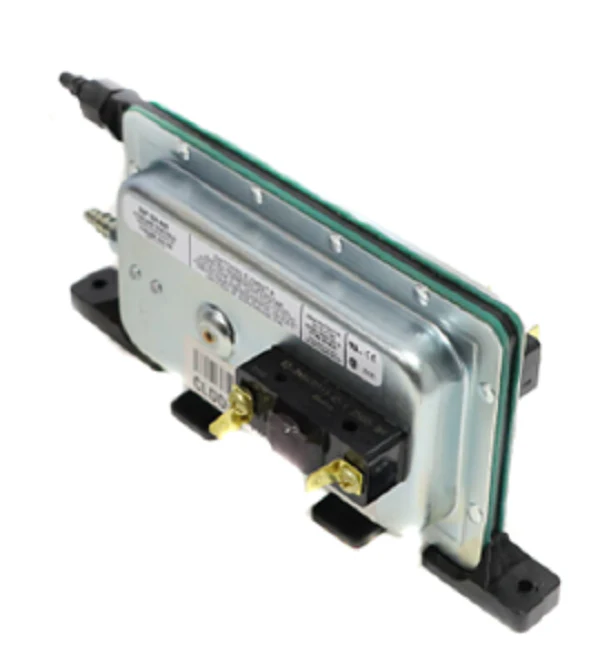

Cleveland Controls DDP-106-408 Sensing Switch
The Cleveland Controls DDP-106-408 is a heavy-duty, field-adjustable differential air pressure sensing switch designed for demanding HVACR applications, including positive, negative, or differential pressure monitoring. This dual-setpoint air pressure switch features two independent SPDT switches, allowing technicians to control high and low limits or sequence operations within a single housing. Built with a robust plated steel enclosure and non-hazardous silicone diaphragm, the DDP-106-408 ensures reliable performance in diverse environmental conditions. With an adjustable range of 0.05" WC to 12.0" WC, it is an essential component for fan pressure monitoring, filter status indication, and airflow proving in commercial air handling units. The unit’s compression fittings facilitate secure 1/4" OD tubing connections, maintaining system integrity during high-pressure cycles. Integrating this HVAC pressure sensor ensures precision and longevity in building automation systems while streamlining differential pressure switch installation for service contractors.
Key Benefits
- Dual Independent Setpoints: Includes two separate SPDT switches for multi-stage control or redundant safety monitoring within a single device.
- Wide Adjustable Range: Field-calibrated setpoints from 0.05" to 12.0" w.c. provide maximum flexibility for various duct static pressure requirements.
- Durable Construction: The rugged plated steel housing and silicone diaphragm sustain long-term accuracy in heavy-duty commercial environments.
- Simplified Integration: Equipped with standard 1/4" compression fittings and versatile mounting options for rapid field replacement and commissioning.
Common Questions
How do I calibrate the setpoints on the DDP-106-408?
Adjustments are made via the internal hex screws. Use a calibrated manometer to verify the exact trip point for both the high and low switches during the commissioning process.
Can this switch be used for both positive and negative pressure applications?
Yes. By utilizing the specific high and low ports, the DDP-106-408 can monitor positive pressure, vacuum (negative) pressure, or the differential pressure across a coil or filter.
What is the electrical rating for the internal SPDT switches?
The switches are typically rated for 15 Amps at 125, 250, or 277 VAC, making them compatible with most standard control circuits and motor starters.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.38
-65%$302.38
$105.83Cleveland Controls DDP-106-408 Sensing Switch
