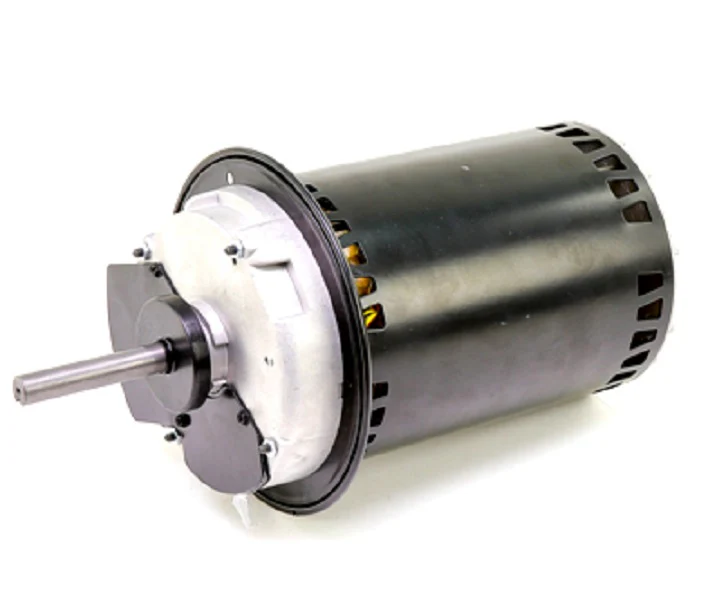

Century Motors H978V1 Motor
The Century Motors H978V1 is a high-performance, three-phase condenser fan motor engineered for demanding commercial and industrial HVACR applications. Operating at a synchronous speed of 1140 RPM, this 6-pole induction motor provides critical airflow with a 1.0 service factor. It features a versatile 208-230/460-575V multi-voltage rating, making it a universal solution for various power configurations. Built on a P56Z frame with a 5/8-inch keyed shaft, this unit is designed for round belly band mounting, ensuring a secure fit in standard 6-1/2 inch diameter housings. As a direct replacement for 7-176055-06, HD52AK652, and 186615, it eliminates cross-referencing guesswork for field technicians. The open dripproof (ODP) enclosure and Class B insulation support continuous duty in ambient temperatures up to 70°C, while double-sealed ball bearings and automatic thermal protection ensure long-term mechanical reliability under fluctuating loads.
Key Benefits for Technicians:- OEM Compatibility: Serves as a drop-in replacement for Carrier HD52AK652 and Magnetek 176055-06, reducing downtime during emergency repairs.
- Broad Voltage Range: The 208-230/460-575Vac capability simplifies truck stock by covering multiple commercial power line requirements with a single SKU.
- Robust Construction: Equipped with double-sealed ball bearings and a 70°C ambient rating for reliable operation in high-heat rooftop environments.
- Installation Flexibility: Features RCC reversible rotation and a 5/8-inch keyed shaft to match existing fan blade and mounting configurations.
Is the Century H978V1 compatible with 575V systems?
Yes, this motor is specifically designated for 208-230/460-575V operation, making it ideal for Canadian industrial standards and heavy-duty 3-phase applications.
What is the frame size and mounting style for this motor?
This motor utilizes a P56Z frame (6.5-inch diameter) and is designed for belly band mounting. The ODP enclosure is optimized for air-over applications where the motor is positioned in the airflow path.
Can I use this to replace a Carrier HD52AK652?
The H978V1 motor is the verified OEM replacement for Carrier part number HD52AK652 and Century 7-176055-06, matching all electrical and mechanical specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
