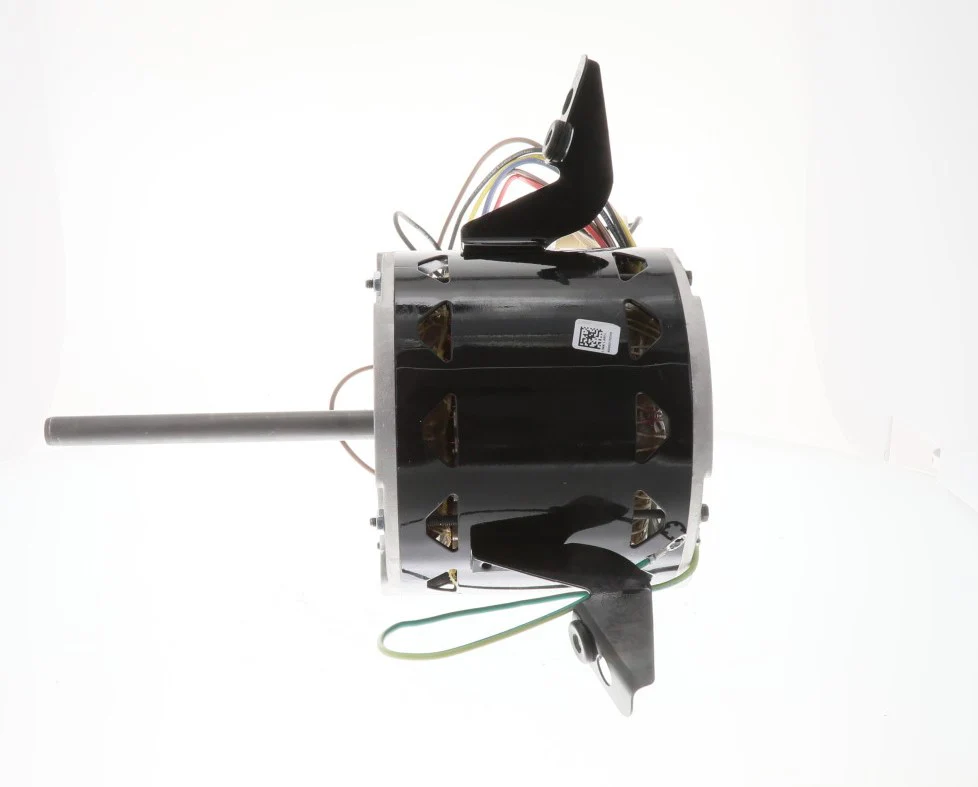

Century Motors FML1036 Motor
The Century Motors FML1036 is a professional-grade direct drive blower motor designed for high-performance HVAC applications requiring reliable 1/3 HP output. Operating at 115 Volts with a 1075 RPM rating, this Permanent Split Capacitor (PSC) motor features a three-speed configuration, allowing for precise airflow adjustment in residential and light commercial air handlers. Built with a NEMA 48Y frame and an open air over (OAO) enclosure, it ensures optimal thermal management during continuous operation. The sleeve bearing design provides quiet performance, while the 1/2" x 6" shaft and reversible rotation capability ensure maximum compatibility for field replacements. Often cross-referenced as S88-369, this motor requires a 5 MFD / 370 VAC capacitor for proper startup and efficiency. Its 6.0 Amp full-load draw and automatic overload protection make it a durable solution for technicians looking to restore system static pressure and CFM performance.
Technical Benefits
- Multi-Speed Flexibility: Three-speed taps allow for fine-tuning system CFM to match residential ductwork requirements.
- Universal Field Replacement: Reversible rotation and a standard 48-frame diameter accommodate a wide variety of furnace and air handler brands.
- Reliable PSC Design: High-efficiency permanent split capacitor operation reduces electrical consumption compared to older shaded pole units.
- Extended Shaft Reach: The 6-inch shaft length provides the necessary clearance for deep-set blower wheels.
Common Contractor Questions
What capacitor is required for the FML1036?
This motor is designed to operate with a 5 MFD 370V run capacitor to ensure the proper phase shift and torque profile.
Can this motor be mounted in any orientation?
Yes, the 48Y frame and internal bearing configuration allow for all-angle mounting, provided the open air over enclosure receives sufficient airflow.
Is the rotation difficult to change in the field?
No, the rotation is easily reversible via the lead connections, making it a versatile "truck stock" motor for emergency calls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
