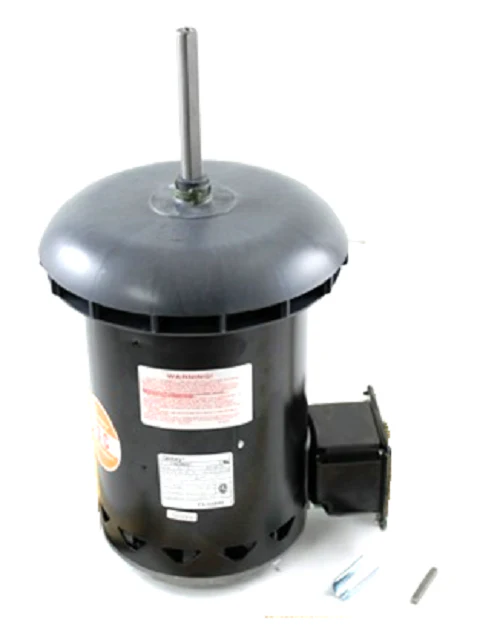

Century Motors FC1086F
The Century Motors FC1086F is a high-performance, 0.8 HP condenser fan motor engineered for demanding commercial HVACR applications. Operating at 1075 RPM with a single-speed configuration, this permanent split capacitor (PSC) motor is a direct replacement for F48Z98A01 and other common 48-frame models. Housed in a 48Y NEMA frame with an open air over (OAO) enclosure, it is designed for maximum heat dissipation in high-ambient environments up to 70°C. The dual-voltage capability (200-230/460 Vac) and reversible rotation provide the versatility needed for rapid field installation. Featuring heavy-duty ball bearings and a 1/2" x 3 1/2" shaft with a 5/8" adapter, this motor ensures reliable performance under significant thrust loads. Built for vertical shaft-up or belly-band mounting, the FC1086F is the professional choice for maintaining optimal airflow in critical cooling systems.
Key Benefits- High-Ambient Endurance: Rated for 70°C (158°F) to withstand extreme rooftop conditions without premature failure.
- Universal Replacement: Specifically designed as a drop-in replacement for F48Z98A01, reducing downtime during emergency service calls.
- Versatile Voltage: Supports 208-230V or 460V single-phase power, simplifying inventory for mixed-voltage commercial sites.
- Field Adaptability: Features reversible rotation and includes a 5/8" shaft adapter to fit various blade hubs.
- Durable Construction: Equipped with dual ball bearings for long-service life in continuous-duty air-over applications.
What capacitor is required for this motor?
The FC1086F requires a 20 MFD / 370V run capacitor (sold separately) for proper startup and efficient operation.
Can this motor be used in totally enclosed applications?
No, this is an Open Air Over (OAO) motor. It relies on the fan's airflow to maintain safe operating temperatures and should only be used where the motor is in the airstream.
Does it support multi-speed configurations?
This is a dedicated 1-speed motor designed for consistent 1075 RPM performance in condenser cooling cycles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
