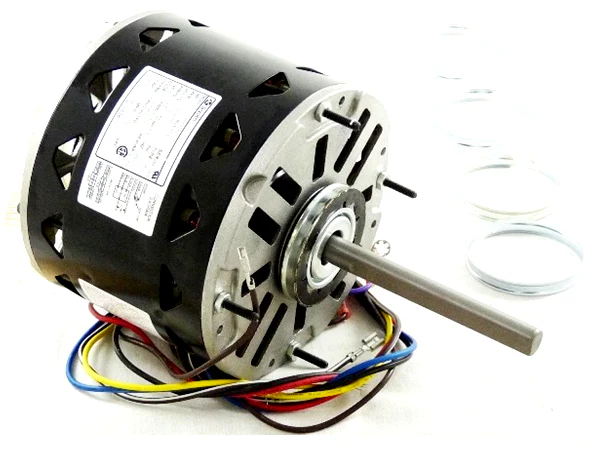

Century Motors DL1036 Motor
The Century Motors DL1036 is a professional-grade 1/3 HP direct drive blower motor engineered for high-static HVAC applications. This 115V single phase motor operates at a nominal 1075 RPM and features a three-speed tap configuration, allowing contractors to fine-tune airflow for various furnace and air handler requirements. Built with a NEMA 48 frame size and a standard 1/2" x 4 1/2" shaft, it serves as a versatile field service solution. As a PSC (Permanent Split Capacitor) motor, it provides reliable torque and high efficiency; note that a 7.5 MFD 370V capacitor is typically required for operation. This unit is the recognized direct replacement for K55HXGZD4276, though specialized mounting adapters may be necessary depending on the housing. Designed with an open air over (OAO) enclosure and sleeve bearings, this reversible rotation motor ensures quiet vertical or horizontal operation in clean, ventilated environments.
Key Benefits:- Multi-Speed Versatility: Triple-speed functionality (1075 High) allows for precise CFM adjustments across heating and cooling cycles.
- Field-Ready Compatibility: Standard 48 frame motor dimensions and reversible CCW/CW rotation simplify stock requirements for service vans.
- K55HXGZD4276 Drop-in: Specifically matched electrical and mechanical specs to replace high-failure OEM units in residential systems.
- Robust Construction: Features thermally protected windings and Class B insulation to prevent burnout during high-demand cycles.
What capacitor is required for the DL1036?
This motor requires a 7.5 MFD / 370 VAC run capacitor (sold separately) to ensure proper starting torque and amp draw.
Can this motor be mounted in any orientation?
Yes, the sleeve bearing design and resilient ring mounting options support both horizontal and vertical shaft applications.
How do I change the rotation of the motor?
Rotation is easily field-reversible by switching the internal lead connectors as specified on the wiring diagram.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $143.72
-65%$143.72
$50.30Century Motors DL1036 Motor
The Century Motors DL1036 is a professional-grade 1/3 HP direct drive blower motor engineered for high-static HVAC applications. This 115V single phase motor operates at a nominal 1075 RPM and features a three-speed tap configuration, allowing contractors to fine-tune airflow for various furnace and air handler requirements. Built with a NEMA 48 frame size and a standard 1/2" x 4 1/2" shaft, it serves as a versatile field service solution. As a PSC (Permanent Split Capacitor) motor, it provides reliable torque and high efficiency; note that a 7.5 MFD 370V capacitor is typically required for operation. This unit is the recognized direct replacement for K55HXGZD4276, though specialized mounting adapters may be necessary depending on the housing. Designed with an open air over (OAO) enclosure and sleeve bearings, this reversible rotation motor ensures quiet vertical or horizontal operation in clean, ventilated environments.
Key Benefits:- Multi-Speed Versatility: Triple-speed functionality (1075 High) allows for precise CFM adjustments across heating and cooling cycles.
- Field-Ready Compatibility: Standard 48 frame motor dimensions and reversible CCW/CW rotation simplify stock requirements for service vans.
- K55HXGZD4276 Drop-in: Specifically matched electrical and mechanical specs to replace high-failure OEM units in residential systems.
- Robust Construction: Features thermally protected windings and Class B insulation to prevent burnout during high-demand cycles.
What capacitor is required for the DL1036?
This motor requires a 7.5 MFD / 370 VAC run capacitor (sold separately) to ensure proper starting torque and amp draw.
Can this motor be mounted in any orientation?
Yes, the sleeve bearing design and resilient ring mounting options support both horizontal and vertical shaft applications.
How do I change the rotation of the motor?
Rotation is easily field-reversible by switching the internal lead connectors as specified on the wiring diagram.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
