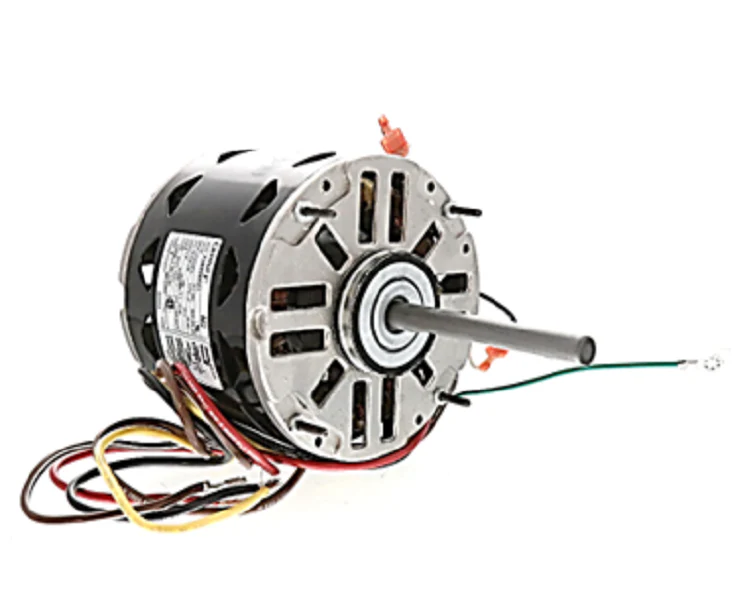

Century Motors D0004
The Century D0004 is a professional-grade, 1/3 HP direct drive blower motor engineered for high-static residential and light commercial HVAC applications. Operating at 1075 RPM on a 208-230V single-phase circuit, this 48-frame motor features a 5-5/8" diameter chassis and is an exact 1/3 HP HC41SE207 replacement for Carrier, Bryant, and Payne equipment. This 2-speed PSC motor (Permanent Split Capacitor) requires a 5 MFD / 370 VAC capacitor for peak torque performance and is built with sleeve bearings to ensure quiet operation in indoor air handlers and furnace assemblies. With 26" leads and a lead reversible design, it offers maximum mounting flexibility. The open construction allows for continuous air-over cooling, which is vital for maintaining thermal stability during high-demand cycles. It includes 2-1/4" resilient rings and 2-1/2" adapters for standard belly-band or cradle mounts.
Key Benefits- OEM Compatibility: Serves as the primary replacement for Carrier HC41SE207, GE 5KCP39JGF181AS, and various Dayton and A.O. Smith models.
- Versatile 2-Speed Operation: Provides the necessary multi-speed taps for optimized airflow in both heating and cooling modes.
- Advanced Thermal Protection: Features an integrated auto protector to prevent winding burnout during over-current or restricted airflow events.
- Reversible Rotation: Simplifies inventory by allowing field-reversible leads (CCW/CW) to match existing blower wheel configurations.
- Durable Sleeve Bearings: Optimized for standard indoor blower duty where low noise and vibration are critical field requirements.
Can I use a 5 MFD/440V capacitor if a 370V is specified?
Yes, a 440V capacitor is a suitable upgrade as it has a higher voltage rating, but you must ensure the capacitance remains exactly 5 MFD to maintain the correct phase shift and motor efficiency.
Is the Century D0004 suitable for outdoor condenser applications?
No, this is an open construction indoor blower motor. Using it in an outdoor condensing unit would expose the internal windings to moisture and debris, leading to premature failure. Outdoor units require a totally enclosed air over (TEAO) motor.
What mounting hardware is included for my furnace unit?
The motor comes standard with 2-1/4" resilient mounting rings and 2-1/2" adapters. For units requiring stud mounting, the 48-frame shell is compatible with most universal belly bands.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
