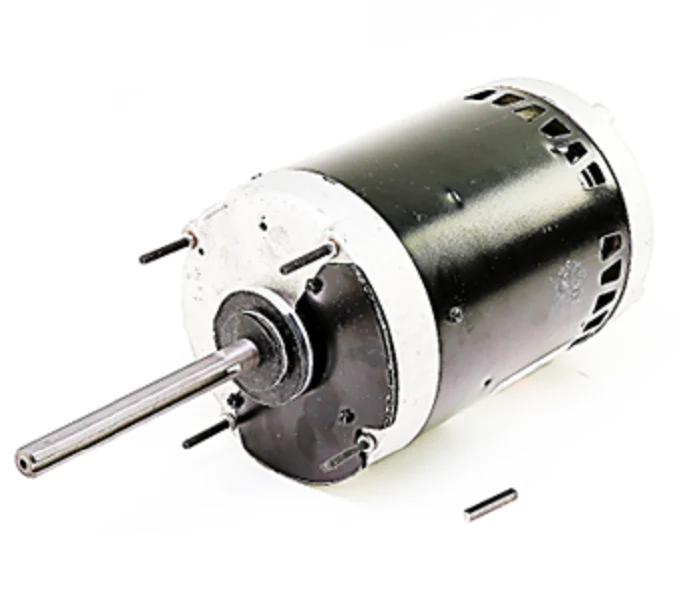

Century Motors C770V1 Motor
The Century Motors C770V1 is a commercial-grade 1 HP condenser fan motor engineered for demanding HVACR environments. Operating at a 1075 RPM synchronous speed, this split capacitor motor is the direct replacement for 2203, Dayton 4MA27, and Marathon X206. It features a versatile 56Y frame with a 6 1/2-inch body diameter and a reversible rotation capability, making it a staple for contractors handling outdoor condenser units, industrial coolers, and air-over applications. The OAO enclosure (Open Air Over) ensures maximum heat dissipation during continuous duty, while the double sealed ball bearings and automatic overload protector provide rugged reliability against the elements.
Built with a 5/8-inch keyed shaft and a 1.00 service factor, the C770V1 motor operates on a dual-voltage 460/200-230V single-phase power supply. Its Class B insulation and 60°C ambient temperature rating make it ideal for high-heat rooftops and shaft-mounted blower equipment. This unit includes resilient mounting rings and extended thru-bolts for secure belly-band mounting or stud-mount configurations.
Key Benefits:- Direct Compatibility: Seamlessly replaces 2203, 3M869, and 4MA27 models to reduce downtime.
- Industrial Build: Double sealed ball bearings prevent contamination and extend service intervals in sandy or high-debris environments.
- Thermal Safety: Integrated auto overload protector prevents winding failure during voltage fluctuations or restricted airflow.
- Installation Flexibility: Reversible rotation (CW/CCW) and dual voltage wiring allow for universal field application.
- Robust Output: 1 HP rating with a 1075 RPM speed provides high-torque performance for large condenser fans.
What capacitor is required for the C770V1?
This motor requires a 25 MFD / 370V run capacitor (not included) for proper phase shifting and torque.
Can this motor be mounted vertically?
Yes, the C770V1 is designed for multiple mounting positions, including vertical shaft up or horizontal, provided it remains within the airflow for the air over cooling design.
Does this unit come with a mounting base?
It features a 56Y frame with resilient rings and 1-inch extended thru-bolts, typically utilized with a belly band or stud mount rather than a rigid base.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
