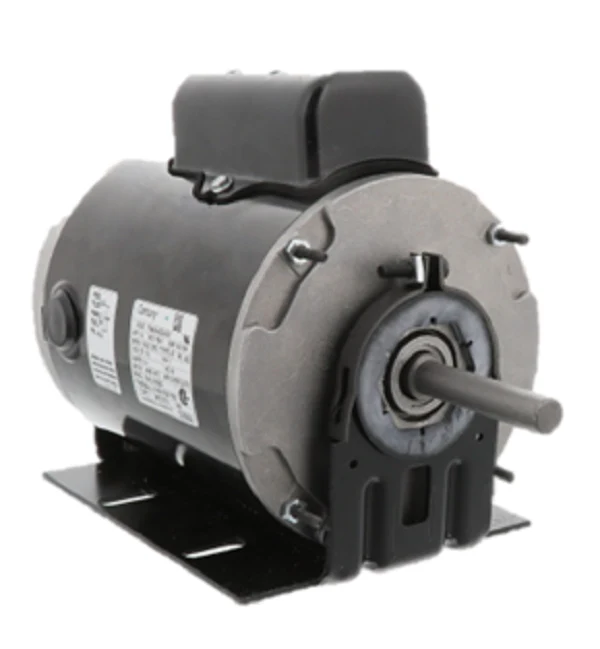

Century Motors C059A Motor
The Century C059A is a commercial-grade 1/4 HP direct drive fan motor specifically engineered for continuous air-over applications in demanding environments. This Permanent Split Capacitor (PSC) motor operates at 115V and features a 2-speed configuration, delivering 1100 RPM for precise airflow management. As the official replacement for the legacy C059 motor, it retains the standard NEMA 48Z frame with a 5.6-inch diameter, ensuring a drop-in fit for existing HVAC and agricultural ventilation systems.
Designed for longevity in high-moisture or high-dust settings, this motor utilizes a Totally Enclosed Air Over (TEAO) enclosure that is fully gasketed to protect internal windings. The 1/2" x 3" single-flat shaft is paired with double-sealed ball bearings and automatic thermal overload protection, providing the reliability required by professional contractors for 24/7 operations. With reversible rotation capability and a resilient base mount, the C059A offers the versatility needed for diverse exhaust and circulation fan setups.
Key Benefits- Direct Replacement: Seamlessly replaces the Century C059 and cross-references with A.O. Smith C059 and Dayton 3M340.
- Enhanced Protection: The TEAO enclosure is fully gasketed, making it an ideal choice for agricultural and harsh industrial ventilation.
- Installation Versatility: Features reversible rotation and a 48Z frame with a resilient base to minimize operational vibration.
- Robust Build: Equipped with double-sealed ball bearings and Class B insulation rated for 40°C ambient temperatures.
Is the capacitor included with the C059A?
Yes, this PSC motor typically requires a 5 MFD / 370 VAC capacitor, which is included to ensure proper 2-speed operation and torque performance.
Can this motor be used in OAO (Open Air Over) applications?
While it can, the totally enclosed design of the C059A is specifically optimized for environments where dust and debris are present, offering superior protection compared to open-frame motors.
How do I change the rotation direction?
The reversible rotation is easily adjusted via the lead connections, allowing for either clockwise or counter-clockwise operation depending on your fan blade pitch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
