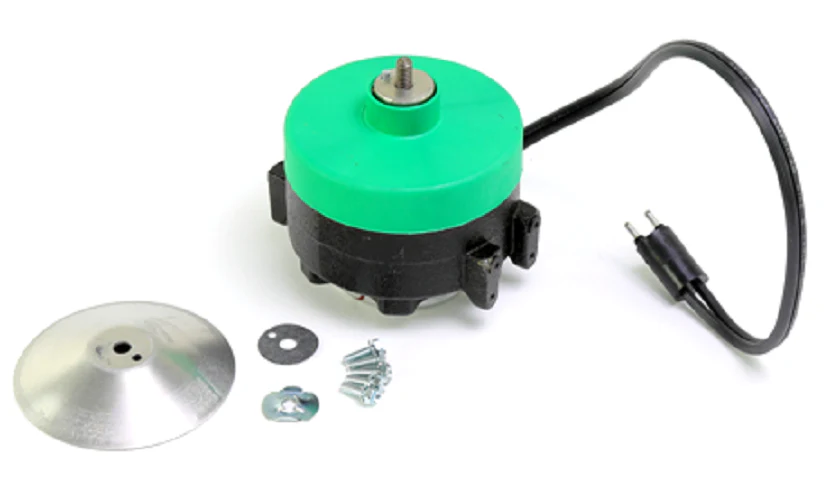

Century Motors 9207F2 Motor
Upgrade your supermarket refrigeration efficiency with the Century Motors 9207F2, a high-performance ECM unit bearing motor designed specifically for evaporator fan applications. This 115V refrigeration motor serves as the direct replacement for D429 and is an ideal energy-saving retrofit for legacy shaded pole motors in Hussmann, Hill, and Kysor equipment. Capable of delivering 1550 RPM with a versatile multi-watt output of 6W, 9W, or 12W, this electronically commutated motor operates with a significantly lower amp draw, reducing total system heat and compressor wear. Featuring a CW rotation (shaft end), 13-inch leads with a Lyall plug, and a totally enclosed air over (TEAO) cast iron construction, the 9207F2 is engineered for the demanding, continuous-duty environments of commercial cold storage. Its iMotor technology exceeds 60% efficiency, providing a 3-in-1 solution that streamlines truck stock for service technicians and contractors.
Key Benefits:- Energy Efficiency: Advanced ECM design reduces energy consumption by up to 65% compared to standard shaded pole motors.
- 3-in-1 Versatility: Replaces 6W, 9W, and 12W ratings, allowing a single motor to cover multiple OEM specifications.
- Drop-in Compatibility: Direct replacement for D429 with standard 3-bolt and 4-bolt Hussmann mounting configurations.
- Rugged Construction: Cast iron frame and TEAO enclosure with low-temperature oil ensure reliable performance in refrigerated environments.
- Moisture Protection: Includes an integrated rain shield to protect internal components from moisture in case evaporator fans.
Is the 9207F2 compatible with my existing D429 motor?
Yes, the 9207F2 is the direct high-efficiency ECM replacement for the D429 unit bearing motor, sharing the same 115V input and 1550 RPM performance characteristics.
Can I adjust the wattage output on this motor?
The 9207F2 is a multi-watt iMotor that automatically senses and delivers the equivalent power required to replace existing 6W, 9W, or 12W motors, simplifying the selection process for contractors.
What mounting options are available for this unit?
This motor features a 1/4" x 20 threaded shaft and multiple mounting options, including the standard 3-hole rear hub and the 4-bolt Hussmann pattern often found in supermarket display cases.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
