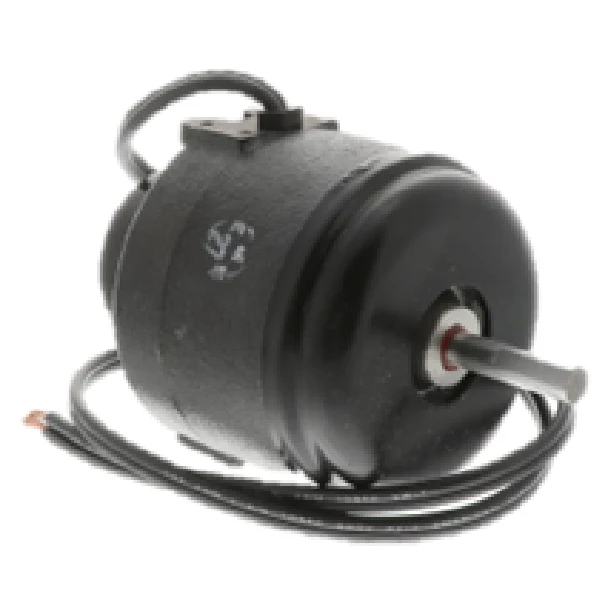

Century Motors 288 Motor
This Century Motors 288 is a heavy-duty, 50-watt unit bearing motor engineered specifically for continuous-duty commercial refrigeration and HVAC ventilation. Operating at 230V single phase with a synchronous speed of 1500 RPM, this 4-pole shaded pole motor provides reliable torque for condenser fans and evaporator blowers. Built with a rugged cast iron frame and a totally enclosed air over (TEAO) design, it prevents dust and moisture from compromising the internal stator and rotor assembly during operation.
The Century 288 motor features a standard 3/8-inch diameter by 1-1/2-inch long flat shaft and is designed for CW lead end rotation (clockwise rotation from the lead end). As a cross-reference for Copeland 050-0244-00 and 998-1007-00, this unit utilizes permanently lubricated unit bearings that eliminate manual oiling requirements in the field. This motor is thermally protected to prevent burnout during high-ambient operation and is UL recognized for integration into various industrial evaporative cooling and refrigeration systems.
Key Benefits- Durable Cast Iron Construction: Provides superior heat dissipation and structural integrity compared to rolled steel alternatives in harsh environments.
- Maintenance-Free Lubrication: Features a permanently lubricated unit bearing design for long-term continuous duty without the need for periodic servicing.
- Universal HVAC Compatibility: Common 3.3-inch frame diameter and 3-hole/2-boss mounting configuration fit a wide range of OEM refrigeration equipment.
- Thermal Overload Protection: Automatic reset thermal protection safeguards the windings against overheating or locked rotor conditions.
Is the Century 288 a direct replacement for Copeland refrigeration motors?
Yes, this motor is the primary technical replacement for Copeland part numbers 050-0244-00 and 998-1007-00, matching the 50W output and 230V electrical requirements.
Can this motor be used in applications without direct airflow?
No, this is a Totally Enclosed Air Over (TEAO) motor. It relies on the movement of air from the fan blade it drives to maintain safe operational temperatures.
What is the direction of rotation for the 288 motor?
The motor is fixed for Clockwise Lead End (CWLE) rotation. Always verify the pitch of your fan blade to ensure proper airflow direction before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
