Barksdale C9612-3 Switch

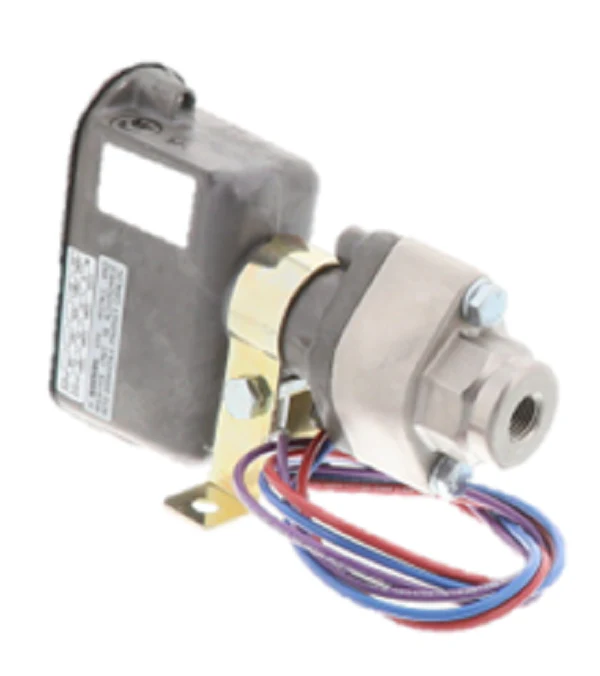

The Barksdale C9612-3 Switch is a high-performance sealed piston pressure switch designed for demanding industrial HVACR and hydraulic applications. Engineered for systems requiring rapid cycling and extreme durability, this visual indicating switch operates within an adjustable range of 250 to 3000 PSI. It features a robust anodized aluminum enclosure with a NEMA 3 rating, ensuring reliability in weather-exposed environments. The internal SPDT snap-action switch is rated for 10 Amps at 125, 250, or 480 VAC, providing versatile integration for compressor control and hydraulic power units. With a proof pressure of 7000 PSI and a Buna-N O-ring seal, the C9612-3 maintains ±2% accuracy across its full operating range. This unit simplifies field calibration via a tamper-proof internal adjustment screw and comes standard with 18-inch free leads for streamlined electrical termination in industrial pressure monitoring layouts.
Key Benefits- High Cycle Life: The sealed piston design is specifically engineered to handle the mechanical stress of high-frequency switching without performance degradation.
- Field Adjustability: Features an easy-to-use internal adjustment screw for precise setpoint calibration between 250 and 3000 PSI.
- Visual Indication: Provides immediate visual confirmation of switch status, critical for troubleshooting HVACR pressure systems.
- Rugged Construction: Utilizes a 416 stainless steel piston and nickel-plated aluminum wetted parts for superior corrosion resistance and longevity.
- NEMA 3 Protection: Weather-resistant housing protects sensitive electrical components from moisture and debris in outdoor or wash-down environments.
How do I adjust the setpoint on a Barksdale C9612-3?
The setpoint is adjusted using a internal screwdriver-slotted screw located under the tamper-proof cover. Turning the screw clockwise increases the actuation pressure, while counter-clockwise decreases it.
What media is compatible with this pressure switch?
This model is compatible with air, water, and most hydraulic fluids. Ensure your media is compatible with Buna-N and 416 stainless steel wetted materials prior to installation.
Can this switch be used for normally open (NO) and normally closed (NC) circuits?
Yes, the SPDT configuration (Single Pole Double Throw) allows the technician to wire the unit for either NO or NC operation depending on the 18-inch lead wire configuration used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
