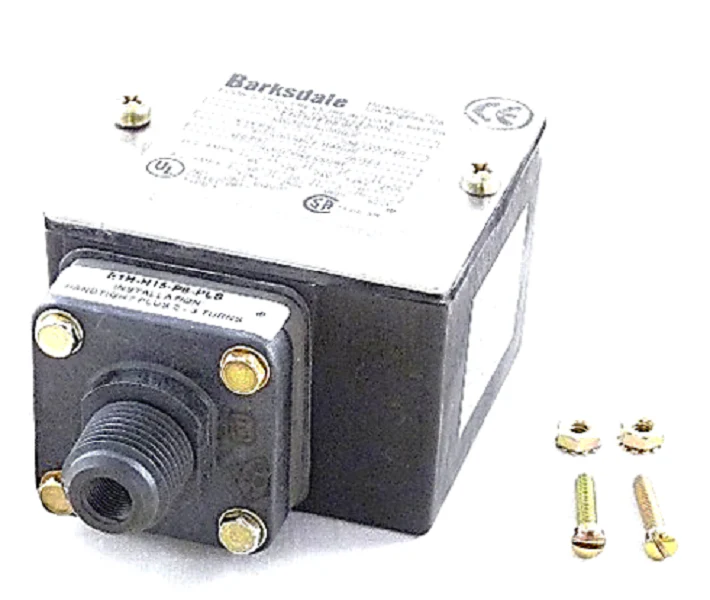

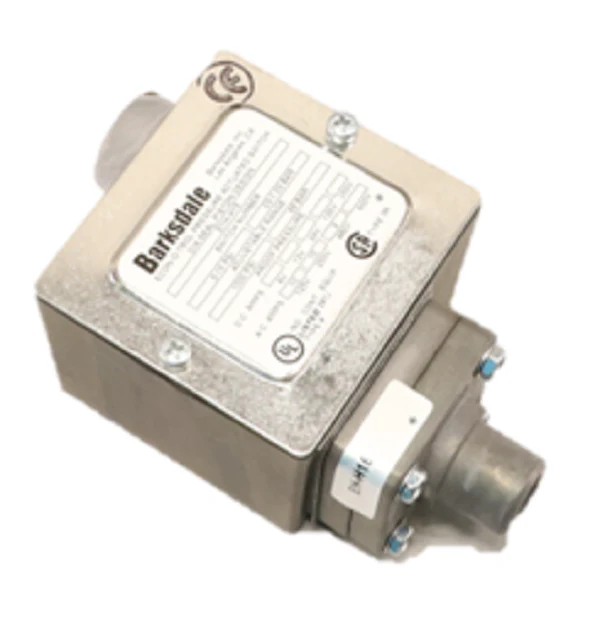

Barksdale E1H-H15-P6-PLS Switch
The Barksdale E1H-H15-P6-PLS is a high-performance diaphragm pressure switch designed for precision monitoring in hazardous and industrial HVACR environments. Engineered with a NEMA 4, 7, and 9 explosion-proof housing, this single setpoint pressure switch offers a versatile adjustment range from 0.5 to 15 psi. As a housed pressure switch with a 1/4" NPT pressure connection, it ensures reliable system pressure monitoring with high repeatability and minimal hysteresis. The assembly features a SPDT limit switch (Single Pole Double Throw) for flexible wiring configurations, commonly utilized in pump control, hydraulic power units, and gas line monitoring. The E1H series is recognized by technicians for its robust construction, utilizing a Buna-N diaphragm and anodized aluminum housing to withstand demanding pressure spikes up to 400 psi. This industrial pressure control solution is ideal for contractors requiring field-adjustable accuracy and long-term stability in critical process applications.
Key Benefits for Industrial Integration:- Precision Calibration: Provides an adjustable range of 0.5 to 15 psi with a high degree of setpoint stability for sensitive HVAC pressure monitoring.
- Hazardous Location Rated: UL and CSA listed for Class I, Groups B, C, and D, and Class II, Groups E, F, and G, ensuring safety in volatile atmospheres.
- Durable Construction: Features a striking-resistant diaphragm and a rugged enclosure that protects internal components from moisture and dust.
- Field Serviceability: Designed with an external adjustment screw and internal terminal strip for rapid onsite wiring and setpoint modification.
How do I adjust the setpoint on the Barksdale E1H-H15-P6-PLS?
The setpoint is adjusted by removing the housing cover and turning the internal adjustment screw; clockwise increases the pressure setting while counter-clockwise decreases it.
What is the maximum proof pressure for this unit?
This model is rated for a maximum proof pressure of 400 psi, ensuring the diaphragm remains intact during significant system surges.
Can this switch be used for vacuum applications?
The E1H series is specifically designed for positive pressure; for vacuum requirements, a dedicated vacuum-rated Barksdale switch should be utilized to maintain accuracy.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
