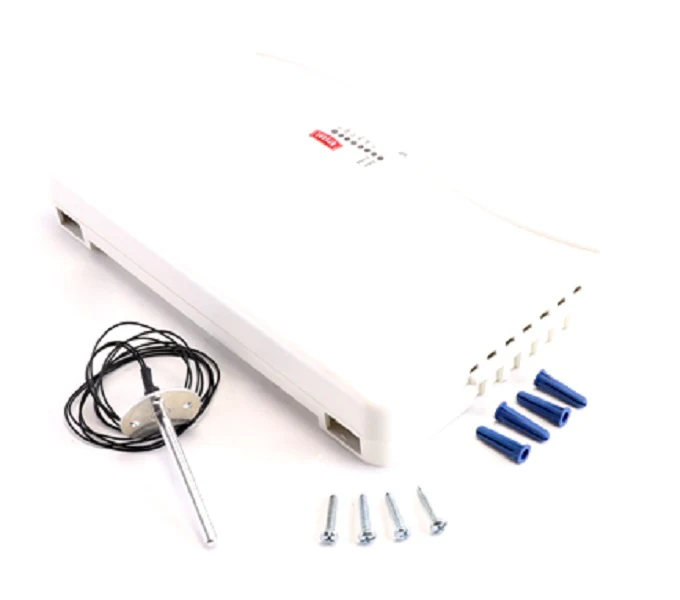

Carrier ZONEBB3ZHP01 Zone Control
The Carrier ZONEBB3ZHP01 is a professional-grade 3-zone control system engineered for precise atmospheric management in residential and light commercial applications. This HVAC zone controller allows for independent temperature regulation across three distinct areas, significantly enhancing HVAC system efficiency by directing airflow only where needed. Designed for versatility, the ZONEBB3ZHP01 is compatible with heat pump systems and multi-stage equipment, supporting up to three stages of heating and two stages of cooling. Each kit includes a critical duct temperature sensor to prevent equipment high-limit trips or coil freeze-ups, serving as a duct temperature optimizer. The board supports up to five dampers per zone, wired in parallel, and integrates seamlessly with standard 24VAC zoning thermostats. Technical features include diagnostic LEDs for rapid field troubleshooting, an emergency heat switch for manual heat pump override, and a maximum cycle rate of 4 CPH to ensure long-term compressor protection. For contractors, the Carrier 3-zone control board utilizes a simplified terminal layout and selection jumpers for efficient, error-free configuration during HVAC zoning installation.
Key Benefits- Zone-Specific Comfort: Facilitates terminal control for up to three independent zones using standard 4-wire or Wi-Fi thermostats.
- Equipment Protection: Includes a factory-supplied LAT sensor (Leaving Air Temperature) to monitor discharge air and prevent heat exchanger or evaporator damage.
- Universal Compatibility: Works with various HVAC dampers and equipment brands, supporting both gas/electric and heat pump configurations.
- Streamlined Installation: Features a side-entry commercial-style wiring block and diagnostic LEDs to identify system status and zone calls at a glance.
Is a separate transformer required for this zone board?
No, the Carrier ZONEBB3ZHP01 typically draws power from the indoor unit's 24V transformer, though a dedicated 40VA transformer is recommended if driving a high number of actuators per zone.
What types of thermostats are compatible with the ZONEBB3ZHP01?
This 3-zone control system is designed to interface with most conventional 24V programmable or non-programmable thermostats, including modern Wi-Fi and smart models that require a common wire.
Can I use this board for an 8-zone application?
The base ZONEBB3ZHP01 supports three zones. For applications requiring up to 8 zones, an expansion module is necessary to link multiple boards together.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,049.02
-65%$1,049.02
$367.16Carrier ZONEBB3ZHP01 Zone Control
