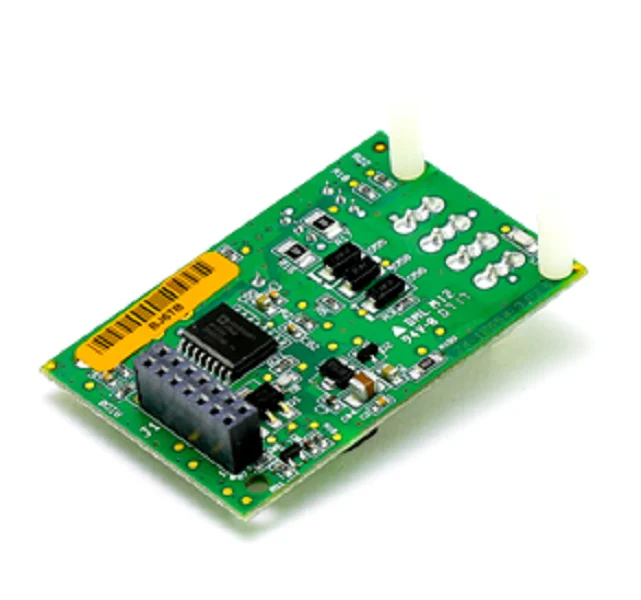

York S1-SE-COM1001-0 Expansion Card
The York S1-SE-COM1001-0 Expansion Card is a critical communication interface designed specifically for the Simply SE Control System. This add-on board functions as an isolated field bus expansion, providing the necessary hardware to bridge York HVAC equipment with sophisticated control networks and building automation systems (BAS). By utilizing a multi-protocol architecture, the S1-SE-COM1001-0 supports BACnet MS/TP, Modbus RTU, and JCI N2, ensuring seamless data exchange and real-time monitoring across diverse commercial and industrial environments. It installs directly onto the Unit Control Board (UCB) via a 14-pin socket, drawing power from the host controller's internal supply with a maximum consumption of 4 VA.
Engineered for high-performance reliability in demanding conditions, this communication expansion card operates within an ambient temperature range of -40°F to 194°F. It enables advanced features like Fault Detection Diagnostics (FDD) and remote system analysis, which are vital for maintaining tight control over rooftop units and networked HVAC components. For field technicians, the card's plug-and-play design simplifies integration, allowing for quick configuration of the FcBusMode and board addressing through the standard LCD menu. This OEM part is essential for contractors looking to upgrade system connectivity without the need for complex software commissioning tools.
Key Benefits:
- Multi-Protocol Support: Native compatibility with BACnet MS/TP, Modbus, and N2 protocols for flexible system integration.
- Simplified Installation: Direct-mount 14-pin interface to the Simply SE Unit Control Board eliminates external power wiring.
- Enhanced Diagnostics: Facilitates real-time data exchange for predictive maintenance and Fault Detection Diagnostics.
- Industrial Durability: Rated for extreme operational environments ranging from -40°F to 194°F (-40°C to 85°C).
- Seamless BAS Connectivity: Allows rooftop units to communicate directly with building management systems for centralized control.
Common Questions:
- Which protocols does the S1-SE-COM1001-0 support? This card supports BACnet MS/TP (default), Modbus RTU, and JCI N2 subordinate field bus protocols.
- Is an external power supply required for the expansion board? No, the card draws its 4 VA maximum power directly from the host controller’s internal power supply.
- How do I set the board address after installation? The address is configured via the LCD menu under Controller > Network > Address, with a range of 1-127.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
