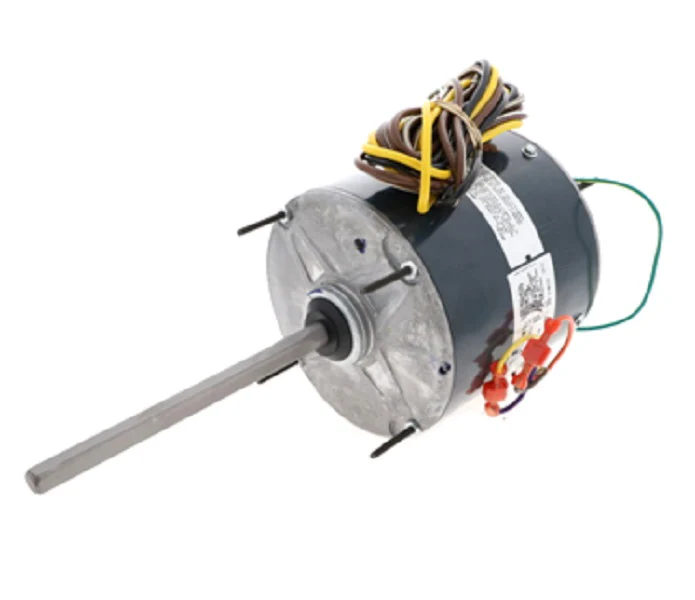

York S1-FHM3205HT Motor
When you're out on a call and find a seized fan, the York S1-FHM3205HT Condenser Motor is the reliable spec-for-spec solution you need to get the system back online. This 1/3 HP powerhouse operates on a 208-230V single-phase circuit and is engineered specifically for high-demand outdoor environments. Running at a steady 825 RPM, it provides the precise airflow required for optimal heat rejection across the condenser coils. As a York S1-6007531 replacement motor, it offers a seamless fit without the need for field modifications or bracket fabrication. Featuring a Totally Enclosed Air Over (TEAO) design, this 825 RPM condenser fan motor is protected against dust and moisture, ensuring long-term performance in extreme weather. Its reversible rotation capability makes it a versatile stock item for technicians, as it can be configured for both clockwise (CW) and counter-clockwise (CCW) applications. This OEM York HVAC motor is the standard for maintaining original equipment efficiency in Coleman, Luxaire, and York units, effectively preventing system high-pressure trips caused by inadequate cooling.
Key Benefits- Precise Compatibility: Serves as the official York S1-024-34550-001 replacement, ensuring electrical and mechanical alignment with existing residential and light commercial equipment.
- Rugged TEAO Architecture: The totally enclosed motor housing prevents environmental debris and rain from entering the internal windings, a critical feature for outdoor condenser fan motors.
- Installation Versatility: The reversible lead-end rotation and standard 48-frame mounting pattern allow for quick adaptation to various fan blade pitches and mounting brackets.
- Optimized Thermal Protection: Equipped with an internal automatic thermal overload protector to safeguard against winding burnouts during high ambient temperature spikes.
Is this motor compatible with 1-speed condenser units?
Yes, the York 1/3 HP condenser motor is a dedicated single-speed unit designed for 208-230Vac single-phase systems requiring a constant 825 RPM output.
Can I use this to replace a motor with a different RPM rating?
It is recommended to match the 825 RPM rating of your existing motor. Installing a motor with significantly higher or lower RPM can disrupt system pressures and impact the cooling capacity of the HVAC unit.
Does this motor include the capacitor?
While this motor is designed to work with standard 370V/440V run capacitors (typically 5 MFD or 7.5 MFD depending on the specific equipment revision), it is best practice to replace the capacitor when installing a new HVAC condenser fan motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
