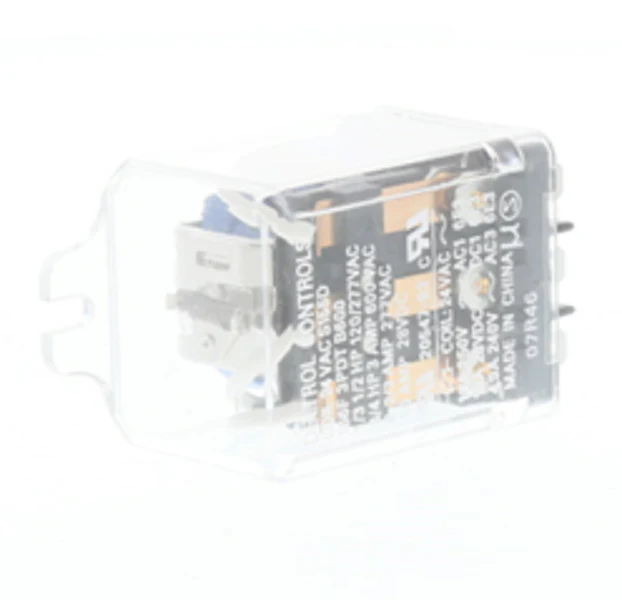

York S1-9536-3551 Relay
The York S1-9536-3551 Relay is a high-performance 24V coil 3PDT cubed relay designed for demanding HVACR control circuits. This OEM switching relay features a three-pole, double-throw (3PDT) configuration, allowing for the simultaneous management of three separate circuits from a single 24-volt control signal. Engineered for heavy-duty switching in commercial HVAC equipment, the S1-9536-3551 ensures reliable load handling and precise timing during cycle transitions. Its compact "cubed" form factor is purpose-built to fit within standard electrical cabinets where space is at a premium, making it a critical replacement control relay for maintaining system uptime. Whether you are managing blower motors, sequencing heating elements, or interfacing with complex control boards, this York OEM relay provides the industrial-grade durability required for continuous duty applications. Maintain the electrical integrity of your Johnson Controls or York systems by utilizing authentic S1-9536-3551 technical specifications for seamless integration and long-term performance in the field.
Key Benefits
- Triple-Pole Versatility: The 3PDT arrangement allows for multi-circuit switching, ideal for complex sequencing in integrated HVAC systems.
- Compact Footprint: The standardized cubed design ensures direct fitment into existing relay sockets and control boxes without modifications.
- Industrial Durability: Built to withstand the high-cycle demands of central air conditioners, heat pumps, and multi-stage furnaces.
- OEM Reliability: Ensures electrical compatibility with 24VAC control systems, preventing common issues like coil chatter or premature contact failure.
Common Questions
Can I use this relay to replace a 2PDT model in a York cabinet?
While a 3PDT relay can technically handle fewer poles, it is always recommended to match the exact pole count and pin configuration of your current unit to ensure all safety interlocks and feedback loops remain functional.
Which HVAC systems are compatible with the S1-9536-3551?
This relay is widely used across York, Luxaire, and Coleman equipment. It is typically found in commercial rooftop units (RTUs), air handlers, and residential multi-stage heating systems requiring sophisticated control logic.
What are the symptoms of a failing 3PDT cubed relay?
Common signs include a buzzing or "chattering" coil, burnt contact points leading to high resistance, or a failure of specific blower/fan components to energize despite receiving a 24V signal at the coil terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
