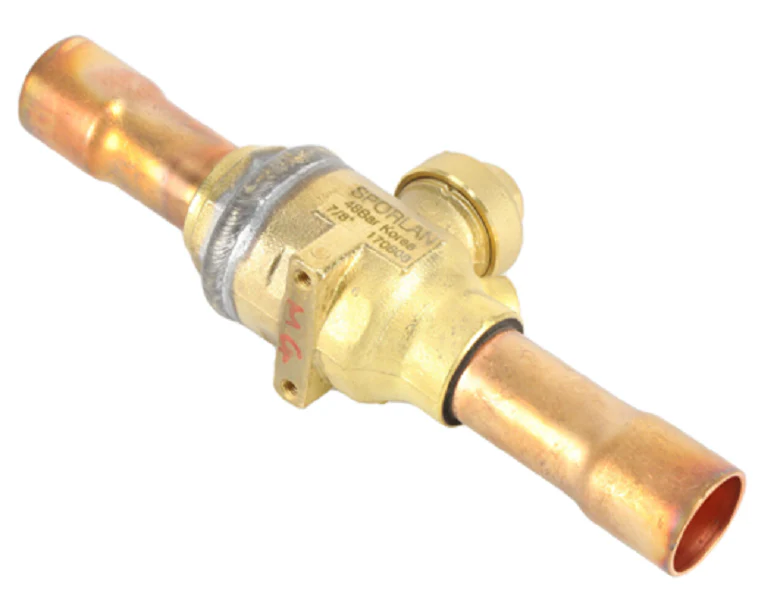

York S1-502039 Ball Valve
The York S1-502039 Ball Valve is a critical isolation component engineered for HVACR refrigeration cycles and high-pressure cooling systems. This 7/8" ODF sweat connection valve features a full port design to ensure maximum flow capacity with negligible pressure drop across the line. Constructed with a forged brass body and a chrome-plated ball, the EBV-1070 ball valve provides superior resistance against corrosion and internal scaling in demanding environments. The dual-sealing technology utilizes reinforced PTFE seats and high-grade refrigerant grade copper extensions to facilitate efficient brazing without damaging internal seals. Designed for compatibility with high-pressure refrigerants like R-410A and R-134a, this valve includes a rupture-proof stem and a secondary seal cap to prevent fugitive emissions. For contractors performing system maintenance or commercial refrigeration repair, this York-certified component ensures precise flow control and reliable long-term hermetic integrity during evacuation and charging procedures.
Key Benefits for Technicians- Full Port Construction: Minimizes turbulence and ensures peak volumetric efficiency for high-flow liquid and suction lines.
- Hermetic Seal Integrity: Specially formulated PTFE seats and dual O-ring stem seals prevent refrigerant leaks and moisture ingress.
- Vibration Resistance: Forged brass chassis and reinforced mounting points withstand the mechanical stresses of industrial compressors.
- Streamlined Installation: Extended 7/8 sweat fittings allow for standard brazing techniques without the immediate risk of heat transfer to internal components.
- Bi-Directional Flow: Optimized internal geometry allows for installation in any orientation, simplifying complex piping layouts.
Is the S1-502039 compatible with high-pressure POE oils?
Yes, the internal seat materials and O-ring configurations are engineered to be chemically compatible with Polyolester (POE) lubricants and standard mineral oils used in York and Johnson Controls equipment.
Can this 7/8" ball valve be used on the discharge line?
This valve is rated for high-pressure applications, making it suitable for liquid, suction, and discharge lines, provided the system pressures do not exceed the specified maximum allowable working pressure (MAWP).
Does the valve include access ports for charging?
The EBV-1070 model focuses on isolation; check for specific sub-variants if you require an integrated Schrader port for pressure monitoring or evacuation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
York S1-502039 Ball Valve
The York S1-502039 Ball Valve is a critical isolation component engineered for HVACR refrigeration cycles and high-pressure cooling systems. This 7/8" ODF sweat connection valve features a full port design to ensure maximum flow capacity with negligible pressure drop across the line. Constructed with a forged brass body and a chrome-plated ball, the EBV-1070 ball valve provides superior resistance against corrosion and internal scaling in demanding environments. The dual-sealing technology utilizes reinforced PTFE seats and high-grade refrigerant grade copper extensions to facilitate efficient brazing without damaging internal seals. Designed for compatibility with high-pressure refrigerants like R-410A and R-134a, this valve includes a rupture-proof stem and a secondary seal cap to prevent fugitive emissions. For contractors performing system maintenance or commercial refrigeration repair, this York-certified component ensures precise flow control and reliable long-term hermetic integrity during evacuation and charging procedures.
Key Benefits for Technicians- Full Port Construction: Minimizes turbulence and ensures peak volumetric efficiency for high-flow liquid and suction lines.
- Hermetic Seal Integrity: Specially formulated PTFE seats and dual O-ring stem seals prevent refrigerant leaks and moisture ingress.
- Vibration Resistance: Forged brass chassis and reinforced mounting points withstand the mechanical stresses of industrial compressors.
- Streamlined Installation: Extended 7/8 sweat fittings allow for standard brazing techniques without the immediate risk of heat transfer to internal components.
- Bi-Directional Flow: Optimized internal geometry allows for installation in any orientation, simplifying complex piping layouts.
Is the S1-502039 compatible with high-pressure POE oils?
Yes, the internal seat materials and O-ring configurations are engineered to be chemically compatible with Polyolester (POE) lubricants and standard mineral oils used in York and Johnson Controls equipment.
Can this 7/8" ball valve be used on the discharge line?
This valve is rated for high-pressure applications, making it suitable for liquid, suction, and discharge lines, provided the system pressures do not exceed the specified maximum allowable working pressure (MAWP).
Does the valve include access ports for charging?
The EBV-1070 model focuses on isolation; check for specific sub-variants if you require an integrated Schrader port for pressure monitoring or evacuation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
