York S1-401318 Filter Drier

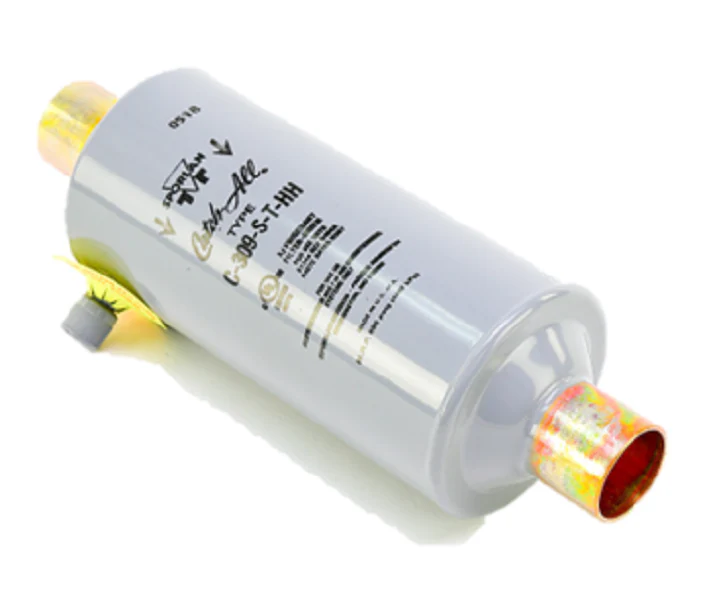

The York S1-401318 Suction Line Filter Drier is a critical component for maintaining system integrity, specifically designed for high-capacity clean-up following a compressor burnout or major system contamination. As a genuine OEM York replacement part, this suction line filter drier features a 1-1/8 inch ODF solder connection, making it compatible with a wide range of residential and commercial HVAC units. Engineered with a specialized charcoal core (C-309-S-T-HH), it provides superior acid and moisture removal while capturing solid contaminants like copper filings and sludge that can compromise your scroll or reciprocating compressor.
For technicians performing a system recovery, the S1-401318 ensures minimal pressure drop while maximizing the filtration surface area. Its robust construction is rated for the high-pressure demands of R-410A refrigerant systems, though it remains versatile for R-22 retrofits and clean-up procedures. Integrating a high-quality HVAC suction filter is an essential best practice to prevent repeat compressor failures by neutralizing residual acids left in the refrigeration circuit.
Key Benefits for the Contractor:- Enhanced Acid Neutralization: The activated charcoal and desiccant core are specifically formulated to handle the acidic byproducts produced during motor burnouts.
- Precision Fit: Features 1-1/8 inch ODF connections to ensure a leak-free, direct-fit installation on standard suction lines without the need for excessive adapters.
- High Solid Contaminant Capacity: Effectively traps scale, solder flux, and debris to protect the compressor’s internal valves and bearings.
- Optimized Flow: Designed to maintain high flow rates and low pressure drops, ensuring the system reaches its rated SEER and EER performance levels.
What is the primary application for the York S1-401318?
This is an HH-style suction drier primarily used for system clean-up after a compressor failure. Its high-acid capacity makes it the standard choice for protecting the new compressor from existing system contaminants.
Can this filter drier be installed in the liquid line?
No, this component is specifically engineered for the suction line. Installing a suction-style drier in the liquid line can lead to excessive pressure drops and potentially catastrophic system damage.
Is this part compatible with R-410A systems?
Yes, the York S1-401318 is fully compatible with both R-410A and R-22 refrigerants, provided the pipe sizing matches the 1-1/8 inch ODF fittings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
