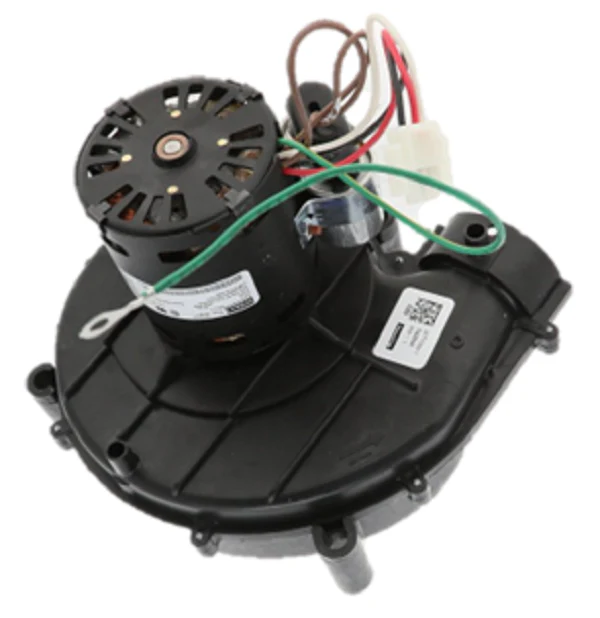

York S1-373-20830-001 Inducer Assembly
The York S1-373-20830-001 Inducer Assembly is a critical OEM replacement for high-efficiency gas furnaces, engineered to safely extract combustion gases from the heat exchanger. This 2-speed draft inducer assembly operates at 115V AC, single phase, and features a high-speed rating of 3450 RPM with a counterclockwise (CCW) lead end rotation. As a complete vinter motor assembly, it comes provided with the necessary gasket to ensure an airtight seal during the installation process, preventing the leak of carbon monoxide or other hazardous flue gases into the building space. Built to stringent technical specifications, this heavy-duty unit maintains optimal static pressure levels required by York, Coleman, Luxaire, and Evcon heating systems. Technicians should verify that the internal cooling fan and motor specs align with the original furnace draft inducer to ensure compatibility with existing system control boards and pressure switches.
Key Benefits for HVAC Professionals:
- Universal OEM Compatibility: Serves as a direct replacement for part numbers S1-373-20830-001, 373-20830-001, 024-27654-000, and Fasco 70624743.
- Integrated Gasket: Each assembly includes a precision-cut gasket, facilitating a secure seal and reducing the risk of differential pressure errors.
- Optimized Performance: The single-phase, 3450 RPM motor is factory-balanced to minimize vibration and resonance during start-up and high-speed operation.
- Reliable Exhaust Management: Specifically designed to handle the high static resistance found in modern high-efficiency heat exchangers.
Frequently Asked Questions:
Does this assembly include the gasket?
Yes, the York S1-373-20830-001 comes with the required gasket for installation, ensuring a proper seal against the furnace collector box.
Is this inducer assembly compatible with Coleman and Luxaire furnaces?
Yes, since Source1 is the OEM provider for the entire family of brands, this unit is widely used across York, Coleman, and Luxaire gas furnace models that call for this specific part number.
What is the rotation orientation for this motor?
This motor utilizes a CCW (Counterclockwise) lead end rotation. Always verify the rotation of your existing blower wheel before finalizing the replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
