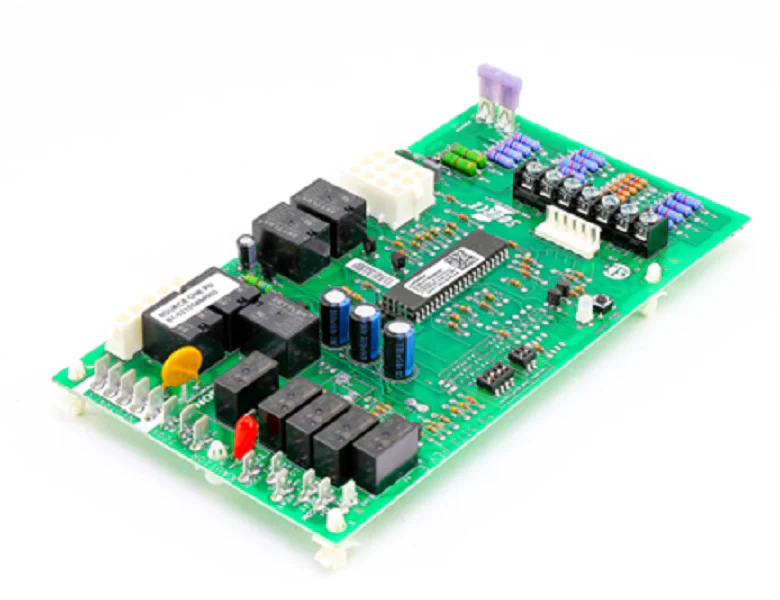

York S1-331-03494-000 Board Kit
The York S1-331-03494-000 Board Kit is a field-proven 2-stage ECM control board designed for high-performance HVAC equipment. This OEM York replacement part provides precise 115/230 VAC management of electronically commutated motors, optimizing airflow for both low and high operation stages. By utilizing advanced onboard algorithms, the Source1 furnace control circuit board adjusts system parameters in real-time to maximize efficiency and reduce component wear. Built for reliability in demanding residential and light commercial applications, this ECM motor control board ensures seamless communication between the thermostat and the blower assembly. HVAC contractors trust this HVAC control board kit for its rigorous build standards and compatibility with specific York, Coleman, and Luxaire models like the 1WR0413 and 2EC0403. When replacing a failed module, this kit serves as the definitive solution for restoring variable speed functionality and maintaining stable static pressure across the system.
Key Benefits- Dual-Stage Precision: Manages distinct low and high operational stages to optimize energy consumption and comfort.
- ECM Compatibility: Engineered specifically for electronically commutated motor technology with 2.5/5.0A current ratings.
- OEM Standards: Genuine Source1 replacement ensures exact fit and standard-compliant performance in York-family units.
- Dynamic Airflow Control: Facilitates variable speed modulation to improve dehumidification and temperature consistency.
Which HVAC models are compatible with this board kit?
This York S1-331-03494-000 is designed for 2-stage systems using ECM motors. It is commonly found in 1WR0413, 1SP0452, and 2EC0403 units, as well as various Coleman and Luxaire air handlers.
How do I troubleshoot a 2-stage ECM control board?
Technicians should verify 24V inputs at the Y1 and Y2 terminals. If the board receives the correct thermostat signals but fails to output the corresponding voltage to the motor harness, the logic circuit may be compromised.
Does this kit include everything needed for a module swap?
Yes, as a board kit, it typically includes the primary circuit board and necessary hardware to replace the existing 331-03494-000 control system in compatible furnaces or air handlers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
