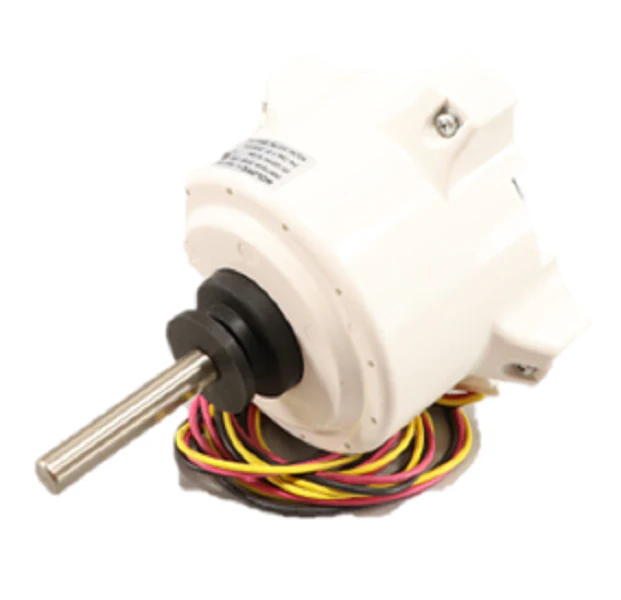

York S1-324-40880-003 Motor
Maintaining air handler performance requires precise torque and speed control, which is exactly why the York S1-324-40880-003 Motor is spec'd for these high-efficiency systems. As a veteran tech, you know that replacing a York 1/3 HP ECM motor with a generic PSC unit is a recipe for static pressure issues and board failures. This 240V ECM motor is an OEM replacement motor designed for constant torque or variable speed applications, ensuring the CFM matches the factory-programmed airflow tables. It features an integrated ECM motor controller with a 16-pin or 5-pin configuration depending on the specific furnace or air handler series, managing the ramp-up and ramp-down profiles to protect the blower wheel and maximize HVAC motor efficiency. When you are on a service call for a "no-start" condition, confirm the high voltage at the 5-pin harness before condemning the module. This replacement blower motor ensures long-term reliability without the resonance noise typical of aging aftermarket components.
Key Benefits for Contractors:- Electronic Commutation: Eliminates brush wear and provides high-torque performance under varying static pressures.
- Precision Airflow: Factory-programmed profiles ensure the system maintains the correct CFM for heating and cooling cycles.
- Quiet Operation: Direct-drive design reduces mechanical vibration and acoustic noise levels in residential spaces.
- Optimal Efficiency: Consumes significantly less power than traditional PSC motors, aiding in overall SEER/HSPF ratings.
- Drop-in Compatibility: No-hassle mounting with standard York furnace and air handler frames for faster job completion.
Question: How do I troubleshoot a no-motion symptom on this S1-324-40880-003?
Answer: First, verify 240V at pins 4 and 5 of the high-voltage harness. If power is present, check for a 24V "G" call at the low-voltage communication plug. If both exist and the shaft rotates freely by hand, the integrated motor controller is likely faulted.
Question: Can I use a regular capacitor with this motor?
Answer: No, this is an electronically commutated motor (ECM). It does not use a run capacitor; the phasing and power factor are handled internally by the motor's microprocessor.
Question: Is this motor pre-programmed?
Answer: Yes, as a genuine OEM part number, this motor comes flashed with the necessary performance parameters for compatible York/Luxaire/Coleman equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $506.09
-65%$506.09
$177.13York S1-324-40880-003 Motor
Maintaining air handler performance requires precise torque and speed control, which is exactly why the York S1-324-40880-003 Motor is spec'd for these high-efficiency systems. As a veteran tech, you know that replacing a York 1/3 HP ECM motor with a generic PSC unit is a recipe for static pressure issues and board failures. This 240V ECM motor is an OEM replacement motor designed for constant torque or variable speed applications, ensuring the CFM matches the factory-programmed airflow tables. It features an integrated ECM motor controller with a 16-pin or 5-pin configuration depending on the specific furnace or air handler series, managing the ramp-up and ramp-down profiles to protect the blower wheel and maximize HVAC motor efficiency. When you are on a service call for a "no-start" condition, confirm the high voltage at the 5-pin harness before condemning the module. This replacement blower motor ensures long-term reliability without the resonance noise typical of aging aftermarket components.
Key Benefits for Contractors:- Electronic Commutation: Eliminates brush wear and provides high-torque performance under varying static pressures.
- Precision Airflow: Factory-programmed profiles ensure the system maintains the correct CFM for heating and cooling cycles.
- Quiet Operation: Direct-drive design reduces mechanical vibration and acoustic noise levels in residential spaces.
- Optimal Efficiency: Consumes significantly less power than traditional PSC motors, aiding in overall SEER/HSPF ratings.
- Drop-in Compatibility: No-hassle mounting with standard York furnace and air handler frames for faster job completion.
Question: How do I troubleshoot a no-motion symptom on this S1-324-40880-003?
Answer: First, verify 240V at pins 4 and 5 of the high-voltage harness. If power is present, check for a 24V "G" call at the low-voltage communication plug. If both exist and the shaft rotates freely by hand, the integrated motor controller is likely faulted.
Question: Can I use a regular capacitor with this motor?
Answer: No, this is an electronically commutated motor (ECM). It does not use a run capacitor; the phasing and power factor are handled internally by the motor's microprocessor.
Question: Is this motor pre-programmed?
Answer: Yes, as a genuine OEM part number, this motor comes flashed with the necessary performance parameters for compatible York/Luxaire/Coleman equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
