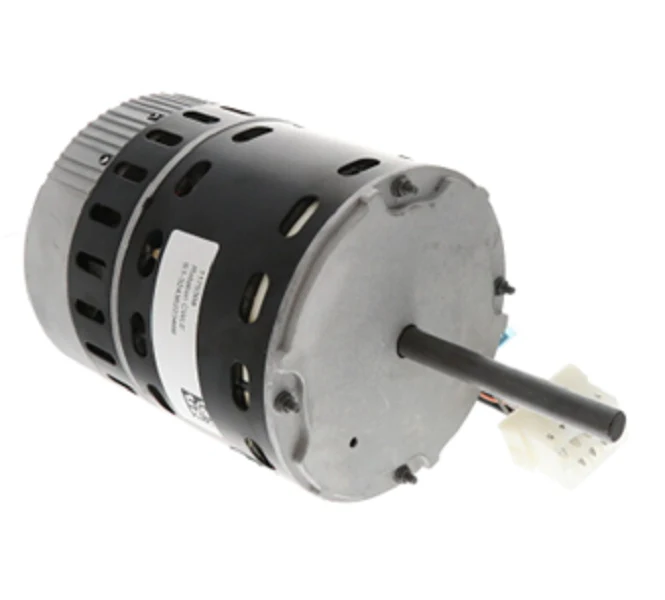

York S1-324-36223-466 Motor
The York S1-324-36223-466 is a professional-grade 1 HP programmed blower motor designed for direct integration into compatible York, Luxaire, and Coleman air handlers and furnaces. As a 230V ECM motor (Electronically Commutated Motor), this unit utilizes advanced internal programming to maintain precise CFM (Cubic Feet per Minute) delivery across various static pressure conditions. This standard ECM blower motor features a constant torque or constant airflow profile depending on the OEM board interface, ensuring that the HVAC system meets design airflow requirements for proper evaporation and heat exchange. For technicians performing a York motor replacement, the S1-324-36223-466 provides a drop-in solution that eliminates the troubleshooting complexities often associated with generic aftermarket motors. Its high-efficiency brushless DC design significantly reduces amp draw compared to traditional PSC motors, while providing quiet, soft-start capabilities that reduce mechanical stress on the blower wheel and housing.
Key Technical Benefits
- Programmed Performance: Pre-configured 1 HP output ensures the motor responds correctly to multi-speed or variable-speed calls from the system control board.
- High Efficiency: The 230V ECM technology operates with significantly less heat loss and lower power consumption than induction motors.
- System Compatibility: Engineered specifically for York HVAC platforms to ensure the correct shaft diameter, frame size, and electrical connector pin-out.
- Reliable Cold Starts: Built-in electronics manage current ramp-up to prevent nuisance tripping and extend the service life of the motor bearings.
Frequently Asked Questions
Can this motor replace a standard PSC motor?
No, the York S1-324-36223-466 is an electronically commutated motor requiring specific control signals. It is designed only as a direct OEM HVAC motor replacement for units factory-equipped with ECM technology.
Does this motor require external capacitors?
No, ECM motors like the S1-324-36223-466 do not use traditional run capacitors. The phase conversion and start-up torque are managed by the integrated electronic control module at the rear of the motor.
Is the module available separately?
This part number typically includes the entire motor and module assembly, as the internal programming is matched to the motor's windings to optimize torque and RPM performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
