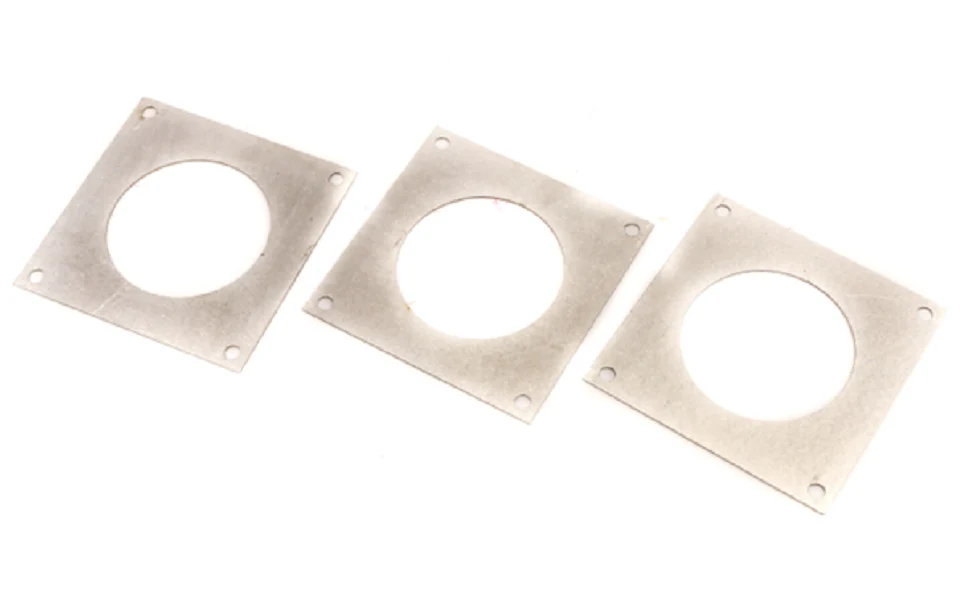

York S1-063-90038-032 Plate
For field technicians and contractors maintaining high-efficiency systems, the York S1-063-90038-032 Ventor Plate is the specific OEM replacement part required to restore factory-spec combustion performance. This critical furnace draft inducer component features a precision-machined 2.437 orifice, engineered to calibrate exact airflow volume within the ventor motor assembly. Proper sizing of the orifice plate is essential; a mismatch in diameter can lead to improper fuel-to-air ratios, triggering pressure switch faults or incomplete combustion. Designed as a direct drop-in for compatible York HVAC units, this plate ensures the ventilation system operates within the manufacturer’s designated static pressure parameters.
When troubleshooting restricted flue exhaust or inducer motor cycling, verifying the integrity of the York S1-063-90038-032 is a standard protocol step. Its durable construction is built to withstand the thermal stress and corrosive flue gases typical of high-demand heating and cooling cycles. By utilizing this exact 2.437 orifice plate, you eliminate the guesswork associated with universal alternatives and maintain the system’s original AHRI ratings and safety certifications. Ensure you verify the model and serial number of the air handler or furnace before installation to confirm this specific Ventor Plate index is the correct match for the BTuh input of the appliance.
Key Benefits- Precision Airflow Calibration: The 2.437-inch orifice provides the exact restriction needed for stable pressure switch operation.
- OEM Compatibility: Guaranteed fit for specific York and Johnson Controls furnace models, ensuring seamless integration with the inducer blower.
- Enhanced System Reliability: Prevents premature wear on the ventor motor by maintaining engineered resistance.
- Optimized Combustion Efficiency: Facilitates correct oxygen-to-fuel mixtures for cleaner burner performance.
What happens if the 2.437 orifice size is incorrect?
Using a plate with an incorrect orifice diameter will alter the pressure differential, often resulting in "Open Pressure Switch" codes or rollout conditions. Always match the S1-063-90038-032 specification to the unit’s data plate.
Is this part compatible with other inducer brands?
This is an authentic York OEM replacement part designed specifically for York, Luxaire, and Coleman equipment. While some plates look similar, the internal diameter is calibrated to the motor's RPM and the heat exchanger’s design.
How do I identify a failing ventor plate?
Check for signs of corrosion, warping, or buildup that restricts the 2.437 orifice. If the inducer motor is clear but the pressure switch fails to close, the plate may be compromised or incorrectly seated.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $29.91
-65%$29.91
