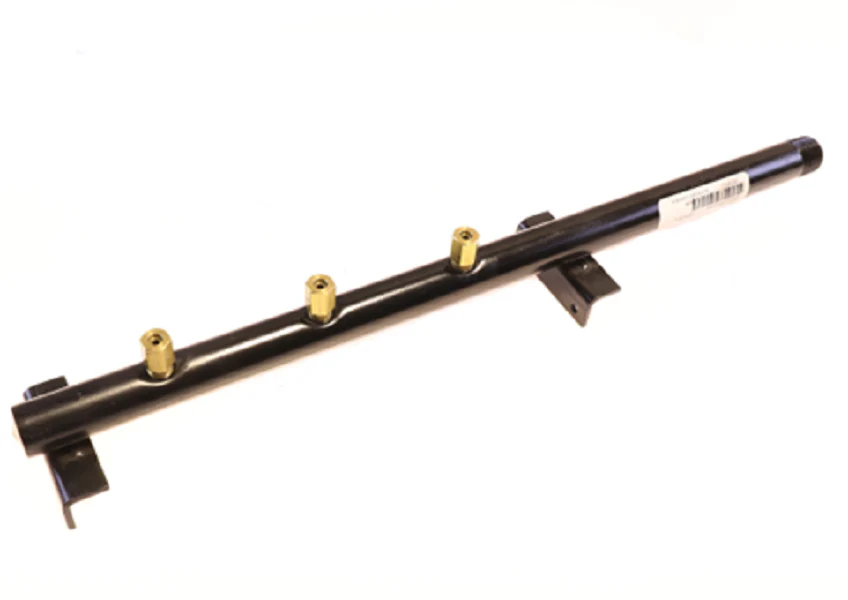

York S1-029-25463-000 Assembly
The York S1-029-25463-000 Assembly is a critical S115 manifold orifice assembly engineered for precise fuel delivery in York and Johnson Controls gas furnace systems. As a direct OEM replacement part, this assembly ensures the correct gas manifold pressure and flow rate required for efficient combustion and heat exchanger performance. For contractors in the field, this York furnace gas manifold eliminates the need for individual orifice reaming or complex field modifications, providing a factory-calibrated solution for specific burner configurations. It is compatible with a wide range of York HVAC gas burner parts, maintaining the system's AFUE rating and operational safety. This manifold orifice replacement is built to exact manufacturer specifications, featuring durable construction to resist the thermal stresses of repeated firing cycles. When servicing residential or light commercial units, utilizing this genuine York part ensures a seamless fit and restores the furnace to its original design parameters without the common leaks associated with aftermarket alternatives.
Key Benefits- Ensures accurate natural gas or LP flow to the burner rack for consistent ignition.
- Facilitates correct gas valve manifold pressure to prevent heat exchanger soot buildup.
- York OEM part design provides exact alignment with burner ports to prevent flame roll-out.
- Reduces diagnostic time by providing a complete, factory-drilled orifice assembly.
- Maintains the structural integrity and efficiency of the York furnace gas burner.
Is this manifold orifice assembly compatible with my specific York furnace model?
This York S1-029-25463-000 is designed for S115 series furnace configurations. You must verify your unit's model number and gas type—whether natural gas or propane—to ensure the orifice drill size matches the manufacturer’s furnace rating plate requirements.
How do I install the S1-029-25463-000 on a burner rack?
The assembly should be securely fastened to the manifold bracket. Technicians must use a calibrated manometer to verify manifold gas pressure at the outlet tap of the gas valve after installation. Always inspect for gas leaks using a certified leak solution at all connection points.
Does this assembly require an LP conversion kit?
Orifice assemblies are specifically sized for either Natural Gas or Liquid Propane. If you are performing a fuel conversion, check the York gas conversion kit specifications to determine if this assembly matches the BTU input requirements for your altitude and fuel type.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
