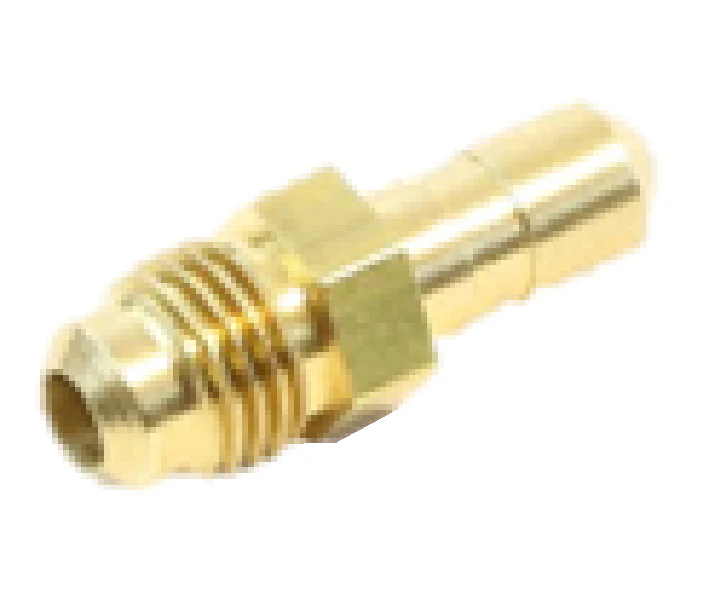

York S1-029-20422-058 Orifice
The York S1-029-20422-058 is a critical OEM natural gas pilot orifice engineered for precision fuel metering in high-efficiency York furnaces and heating units. Featuring a #58 orifice size with a verified .042-inch diameter, this component is essential for maintaining the correct gas-to-air ratio required for stable pilot ignition and flame rectification. For service contractors, using genuine York replacement parts ensures compatibility with the existing pilot burner assembly, preventing issues such as intermittent ignition failures or premature thermocouple soot buildup. This precision-machined brass orifice is designed specifically for natural gas applications, delivering a consistent BTU output to the pilot flame. When performing seasonal maintenance or troubleshooting a "no heat" call, verifying the S1-029-20422-058 specifications against the data plate is fundamental for system safety and operational reliability in the field.
Key Benefits for Technicians:- OEM Precision: Direct replacement for part number S1-029-20422-058 ensures a perfect seat within the burner housing without the need for field modifications.
- Optimized Gas Flow: The #58 (.042") orifice size is factory-calibrated for natural gas pilot assemblies, providing a stable flame for reliable sensor feedback.
- Industrial Durability: Machined to rigorous York standards to withstand high-temperature environments within the combustion chamber.
- Compatibility: Designed for seamless integration into a wide range of York, Coleman, and Luxaire gas-fired heating systems.
What are the symptoms of a clogged York pilot orifice?
A restricted or dirty orifice often results in a weak, yellow pilot flame that fails to properly heat the thermocouple or flame sensor, leading to system lockout.
Can this orifice be used for Propane (LP) conversions?
No, the S1-029-20422-058 is strictly for natural gas. LP applications require a smaller orifice diameter due to the higher energy density and pressure of liquid propane.
Is this a universal HVAC part?
While it fits many models under the Johnson Controls umbrella (York, Coleman, Luxaire), technicians should always verify the specific York pilot orifice requirements in the furnace service manual.
Safety Information:
- California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
